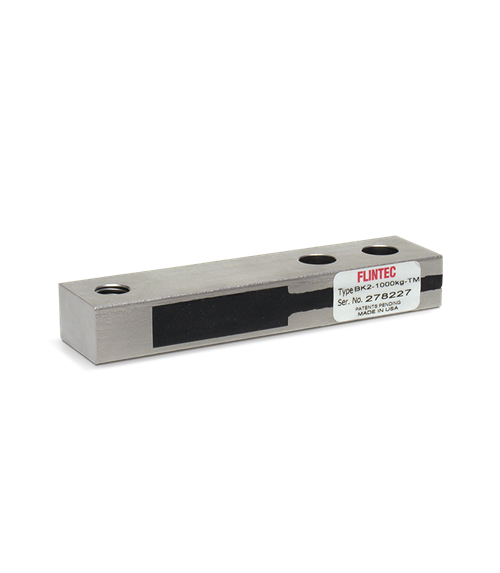

Designed to lower the scale profile by providing a load cell that is half the overall height of traditional solutions. Ideal for applications such as low-profile floor scales, this model is constructed of stainless steel and is environmentally potted to provide suitable protection for indoor applications. The standard calibration technique used by Flintec® avoids time-consuming calibration for multiple load cell applications. Available in capacities from 200 kg to 2,000 kg and includes 10 ft of standard load cell cable.

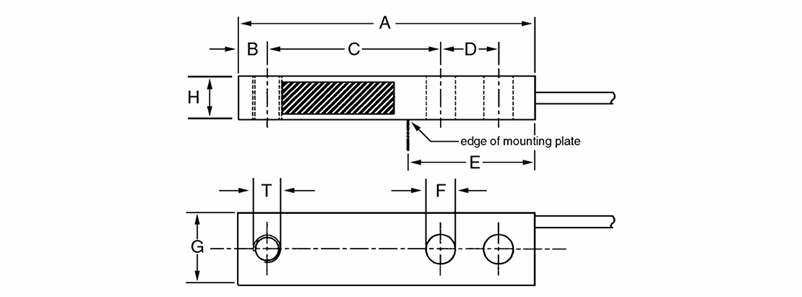

| Rated Capacity | A | B | C | D | E | F | G | H | T* |
|---|---|---|---|---|---|---|---|---|---|
| kg/mm | |||||||||
| 200 | 128.5 | 12.7 | 76.2 | 25.4 | 53.8 | 13(2x) | 31.8 | 16.1 | 1/2-20 UNF |
| 500 | 128.5 | 12.7 | 76.2 | 25.4 | 53.8 | 13(2x) | 31.8 | 16.1 | 1/2-20 UNF |
| 1,000 | 128.5 | 12.7 | 76.2 | 25.4 | 53.8 | 13(2x) | 31.8 | 19.1 | 1/2-20 UNF |
| 2,000 | 130.2 | 12.7 | 76.2 | 25.4 | 53.8 | 13(2x) | 31.8 | 25.4 | 1/2-20 UNF |
| *Metric thread is available | |||||||||
| Full Scale Output: 2.0 mV/V mV/V/ohm calibration Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 200% full scale Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: |
Cable Diameter: 0.196 in Polyurethane jacket Cable Color Code: Warranty: Approvals: |
