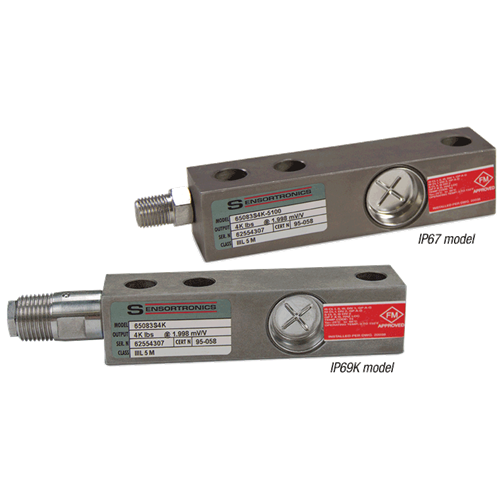

This precision load cell offers exceptional performance and reliability in hostile environment applications typical of food and chemical processing. Designed for single- or multiple-cell installations, the 65083S is provided with a threaded load hole for easy adaptation of mounting hardware or leveling feet typical of floor scales. Capacities range from 1,000 to 10,000 lb. Complete with 20 ft of load cell cable.

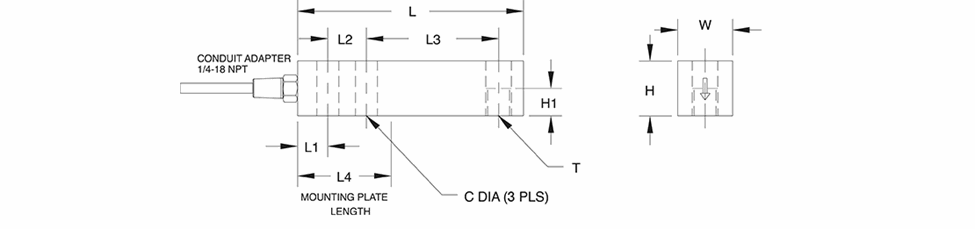

| Rated Capacity | C | H | H1 | L | L1 | L2 | L3 | L4 | T | W |
|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||||
| 1,000 to 4,000 | 0.53 | 1.22 | 0.61 | 5.12 | 0.62 | 1.00 | 3.00 | 2.25 | 1/2-20 UNF | 1.22 |
| 5,000 to 10,000 | 0.78 | 1.50 | 0.75 | 6.75 | 0.75 | 1.50 | 3.75 | 3.00 | 3/4-16 UNF | 1.50 |
| Full Scale Output: 2.0 mV/VOutput Resistance: 349 to 355 ohm Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scaleSafe Sideload: 100% full scale Rated Excitation: Combined Error: Non-Repeatability: Insulation Resistance: Deflection at Capacity: |
Cable Length: 20 ftCable Diameter: 0.220 in PTFE jacket Conduit Adapter Size: Cable Color Code: Warranty: Approvals: |
