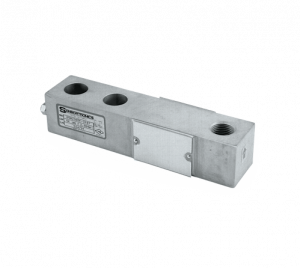

Designed for low-profile floor scales. Environmentally protected with stainless steel side plates. Stainless steel and a threaded hole for loading. Available in 250 lb, 500 lb, 15,000 lb and 20,000 lb capacities.

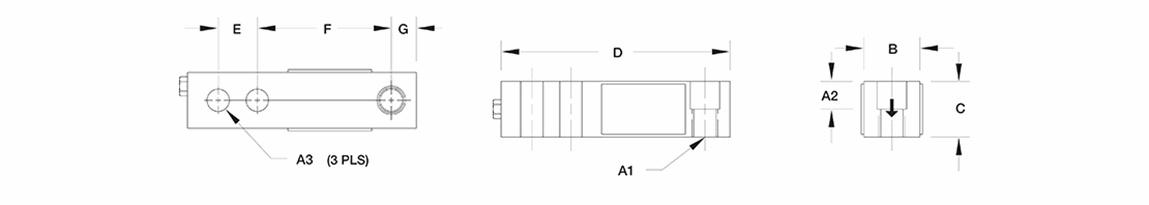

| Rated Capacity | A1 | A2 | A3 | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||
| 250 to 500 | 1/2-20 UNF | 0.50 | 0.53 | 1.25 | 1.00 | 5.12 | 1.00 | 3.00 | 0.50 |
| 15,000 to 20,000 | 1-14 UNS | 1.00 | 1.03 | 2.00 | 2.00 | 8.88 | 2.00 | 4.88 | 1.00 |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: Safe Overload: |
Safe Sideload: 100% full scale Rated Excitation: Nonlinearity: Hysteresis: Insulation Resistance: Deflection at Capacity: |
Cable Length: 20 ft Cable Diameter: Cable Color Code: Warranty: Approvals: |
