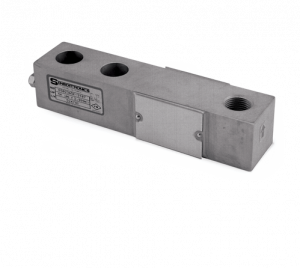

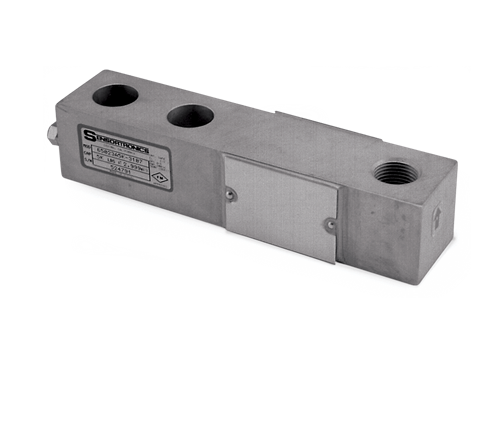

Designed for low-profile floor scales. Environmentally protected with stainless steel side plates. Stainless steel and a threaded hole for loading. Capacities range from 1,000 to 10,000 lb.

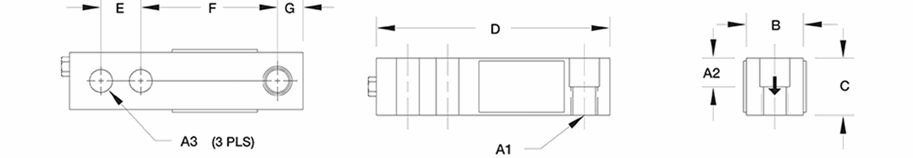

| Rated Capacity | A1 | A2 | A3 | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||
| 1,000 to 4,000 | 1/2-20 UNF | 0.62 | 0.53 | 1.00 | 1.25 | 5.12 | 1.00 | 3.00 | 0.50 |
| 5,000 to 10,000 | 3/4-16 UNF | 0.75 | 0.78 | 1.50 | 1.50 | 6.75 | 1.50 | 3.75 | 0.75 |
| 65023S 2,500lb -5513 low-profile 0.75 inches tall | |||||||||
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: |
Cable Length: 20 ft Cable Color Code: Warranty: Approvals: |
