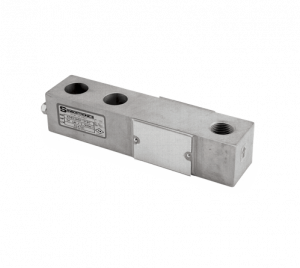

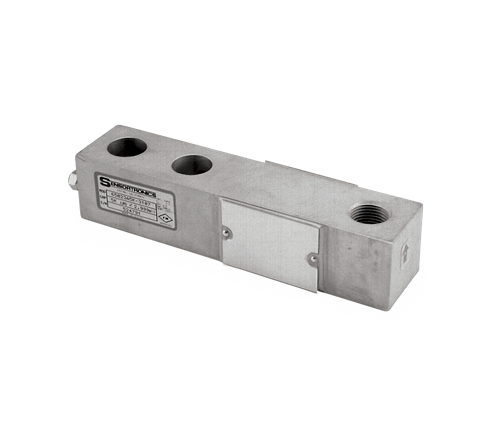

The Vishay Sensortronics 65023 has been a staple in the Rice Lake Weighing Systems Load Cell Guide for years. This model is manufactured from high-alloy steel and is nickel-plated to provide protection from the elements. The latest version is the 65023-XX-5297, which is custom featured with matched outputs and 8.5 ft of load cell cable. This model was originally designed for Fairbanks® scales under part number 65023-XX-5164 and can now be purchased from Rice Lake Weighing Systems for replacement applications. Available in capacities of 1,000 lb, 2,500 lb and 5,000 lb.

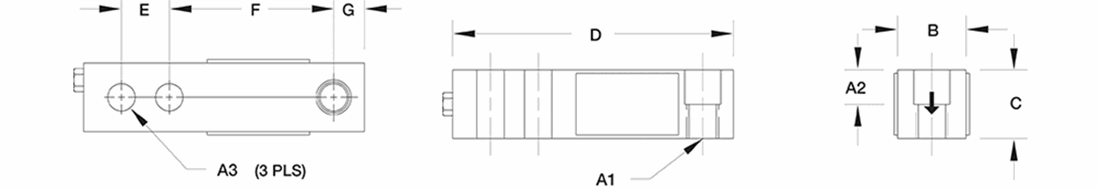

| Rated Capacity | A1 | A2 | A3 | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||
| 1,000 to 2,500 | 1/2-20 UNF | 0.62 | 0.53 | 1.25 | 1.25 | 5.12 | 1.00 | 3.00 | 0.50 |
| 5,000 LE
|
3/4-16 UNF | 0.75 | 0.78 | 1.50 | 1.50 | 6.75 | 1.50 | 3.75 | 0.75 |
| LE=Large Envelope | |||||||||
| Full Scale Output: 3.0 mV/V mV/V/ohm calibration Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Environmentally sealed, IP67 Safe Overload: Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: |
Cable Length: 1,000 to 2,500 lb: 8.5 ft 5,000 lb: 10 ft Cable Diameter: Cable Color Code: Warranty: Approvals: |
