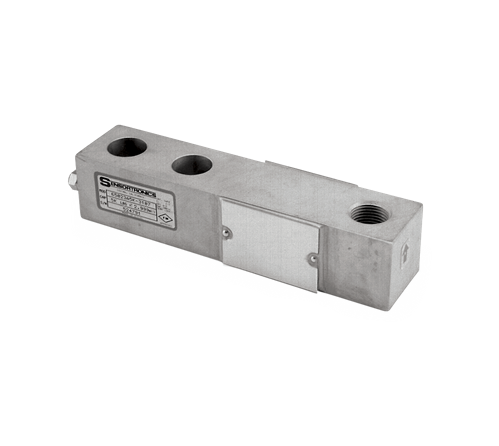

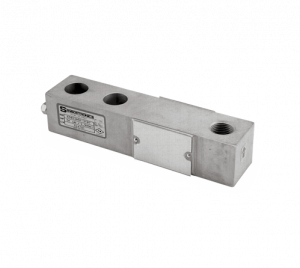

The 65023A-5107-10 is a replacement load cell for the previously offered 65023-5141 Vishay Sensortronics cell. The 65023A-5107-10 is appropriate for a specific OEM manufacturer and is available through Rice Lake Weighing Systems to help streamline your parts orders. This model was previously specific to Pennsylvania Scale and features a 10 ft of load cell cable. Available in 1,000 lb and 2,500 lb capacities.

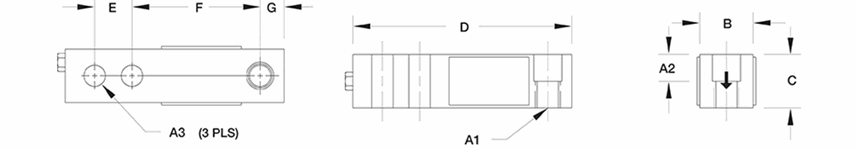

| Rated Capacity | A1 | A2 | A3 | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||
| 1,000 to 2,500 | 1/2-20 UNF | 0.62 | 0.53 | 1.25 | 1.25 | 5.12 | 1.00 | 3.00 | 0.50 |
| Full Scale Output: 3.0 mV/V mV/V/ohm calibrated Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: |
Cable Length: 10 ft Cable Diameter: Cable Color Code: Warranty: Approvals: |
