Nickel plated and environmentally protected with stainless steel side plates. Designed for center loading compatibility with RL1600 tank weighing assemblies. Capacities range from 1,000 to 75,000 lb. Complete with 25 ft of load cell cable.

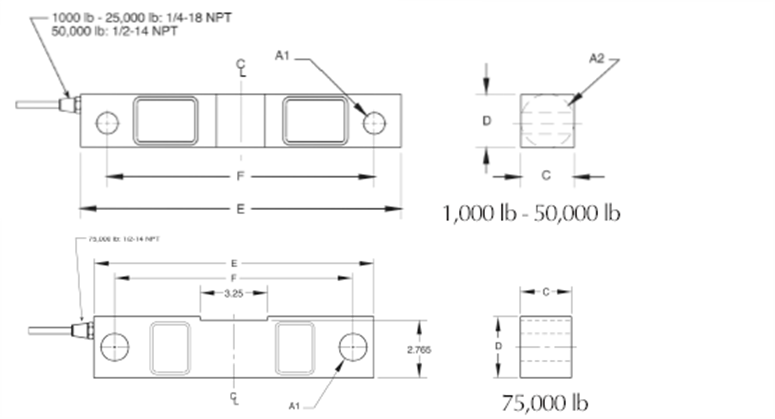

| Capacity | A1 | A2 | C | D | E | F | CONDUIT ADAPTER |
|---|---|---|---|---|---|---|---|
| lb/in | |||||||
| 1,000 to 5,000 | 0.50 | 1.25 | 1.25 | 1.25 | 7.50 | 6.25 | 1/4-18 NPT |
| 10,000 to 25,000 | 0.81 | 1.99 | 1.44 | 1.94 | 8.75 | 7.50 | 1/4-18 NPT |
| 35,000 | 0.81 | 2.50 | 1.50 | 2.50 | 8.75 | 7.50 | 1/4-18 NPT |
| 50,000 | 1.31 | 3.00 | 2.44 | 2.94 | 13.50 | 11.50 | 1/2-14 NPT |
| 75,000 | 1.31 | — | 2.44 | 2.94 | 13.50 | 11.50 | 1/2-14 NPT |
| 75,000lb capacity has a square center | |||||||
| Full Scale Output: 3.0 mV/V nominal Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Nonlinearity: Hysteresis: Insulation Resistance: |
Cable Length: 25 ft Cable Diameter: Cable Color Code: Warranty: Approvals: |
