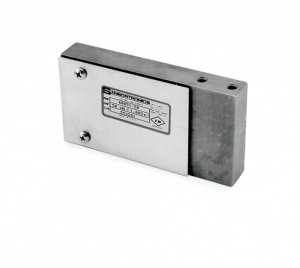

Designed as a replacement for the NCI® Mark III in hostile environments. Stainless steel, moisture-resistant single-point cell. Complete with 10 ft of load cell cable. 10 lb to 25 lb cells may be used with a base size of 8 × 8 inch; 50 to 200 lb cells may be used with a base size of 12 × 12 inch.

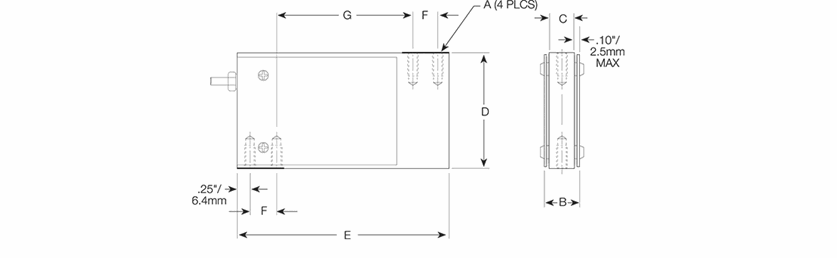

| Rated Capacity | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|
| lb/in | |||||||
| 10 to 25 | 1/4-28 UNF | 0.70 | 0.50 | 2.50 | 4.63 | 0.75 | 2.62 |
| 50 to 200 | 1/4-28 UNF | 0.95 | 0.75 | 2.50 | 4.63 | 0.75 | 2.62 |
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Rated Excitation: Nonlinearity: Hysteresis: Insulation Resistance: Deflection at Capacity: |
Cable Length: 10 ft Cable Diameter: Cable Color Code: Warranty: Approvals: |
