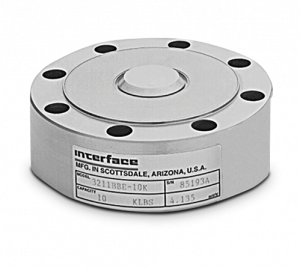

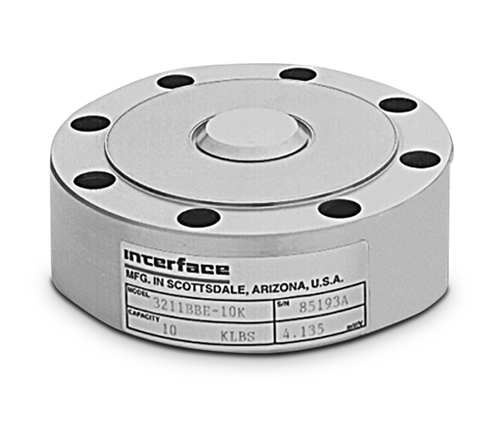

Designed specifically for difficult applications in harsh environments, these units incorporate welded stainless steel diaphragms to resist corrosion and seal against moisture intrusion. These load cells provide high accuracy, resistance to off-center loads with minimum error, excellent temperature specifications and low height envelope for ease of installation. Capacities range from 5,000 lb to 100,000 lb. Complete with 20 ft of load cell cable.

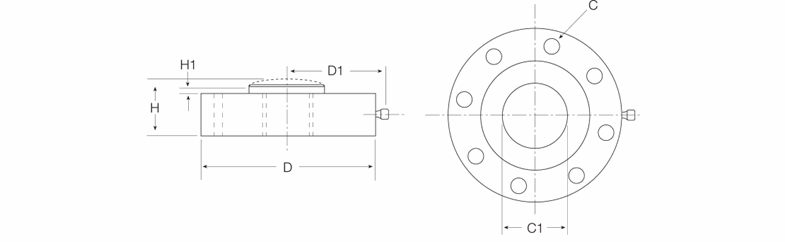

| Rated Capacity | C | C1 | D | D1 | H | H1 |
|---|---|---|---|---|---|---|
| lb/in | ||||||
| 5,000 to 10,000 | 0.28 dia 8 Holes | 1.34 | 4.12 | 2.56 | 1.37 | 0.12 |
| 25,000 to 50,000 | 0.34 dia 4 Holes | 1.57 | 4.75 | 2.87 | 1.75 | 0.12 |
| 100,000 | 0.47 dia 12 Holes | 3.12 | 7.50 | 4.25 | 2.25 | 0.25 |
| Full Scale Output: 4.0 mV/V Bridge Resistance: Material/Finish: Temperature: |
Seal Type: Hermetically sealed, IP66/68 Safe Overload: Rated Excitation: Nonlinearity: Hysteresis: |
Insulation Resistance: 5,000 megohm Cable Length: Cable Color Code: Warranty: |
