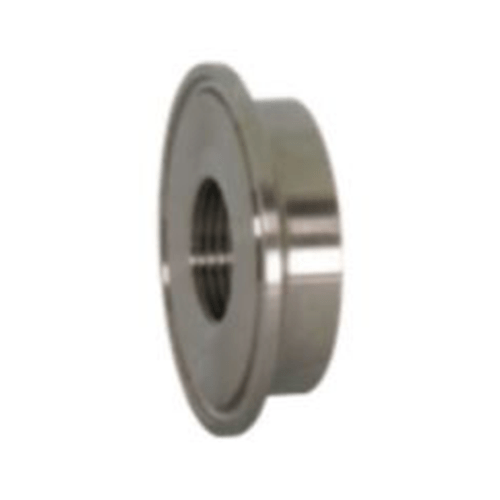

Sanitube stainless steel clamp fittings create a quick clamp union for instant assembly or disassembly of secure, leak proof connections. With a gasket in place between two ferrule ends, a clamp is secured around the joint to complete the connection. Clamp connections can be secured without the use of tools when using Sanitube wing nut style clamps.
– All tap sizes available
| Size (Tube OD) |
Part Number | Dimensions | ||||
| 304 | 316L | A | B | |||
| 1 “ | — | 23BMP6-100 | 0.625 | 1.984 | ||
| 1-1/2″ | — | 23BMP6-150 | 0.625 | 1.984 | ||
| 2 “ | — | 23BMP6-200 | 0.625 | 2.516 | ||
| 2-1/2″ | — | 23BMP6-250 | 0.625 | 3.047 | ||
| 3 “ | — | 23BMP6-300 | 0.625 | 3.579 | ||
| 4 “ | — | 23BMP6-400 | 0.625 | 4.682 | ||
