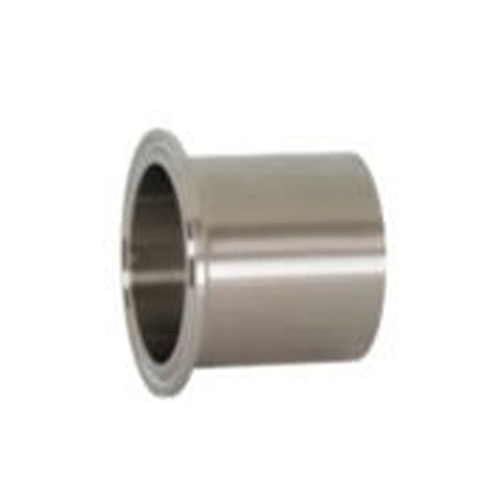

Automated Weld Ferrules (For Orbital Welding)

Sanitube stainless steel clamp fittings create a quick clamp union for instant assembly or disassembly of secure, leak proof connections. With a gasket in place between two ferrule ends, a clamp is secured around the joint to complete the connection. Clamp connections can be secured without the use of tools when using Sanitube wing nut style clamps.

Description

Automated Weld Ferrules (For Orbital Welding) Specifications

Size
(Tube OD)
Part Number Dimensions
304 316L A B C
1/2″ STL14AM76PL-050 1.750 0.370 0.500
3/4″ STL14AM76PL-075 1.750 0.620 0.750
1   “ STL14AM76PL-100 1.750 0.870 1.000
1-1/2″ STL14AM76PL-150 1.750 1.370 1.500
2   “ STL14AM76PL-200 2.250 1.870 2.000
2-1/2″ STL14AM76PL-250 2.250 2.370 2.500
3   “ STL14AM76PL-300 2.250 2.870 3.000
4   “ STL14AM76PL-400 2.250 3.834 4.000
6   “ STL14AM76PL-600 3.000 5.782 6.000
8   “ STL14AM76PL-800 3.000 7.760 8.000
