Full Scale Output:
3.0 mV/V
Output Resistance:
349 to 355 ohm
Input Resistance:
360 to 450 ohm
Material/Finish:
High-alloy steel, nickel plated
Temperature:
Operating range
0 °F to 150 °F (-18 °C to 65 °C)
Seal Type:

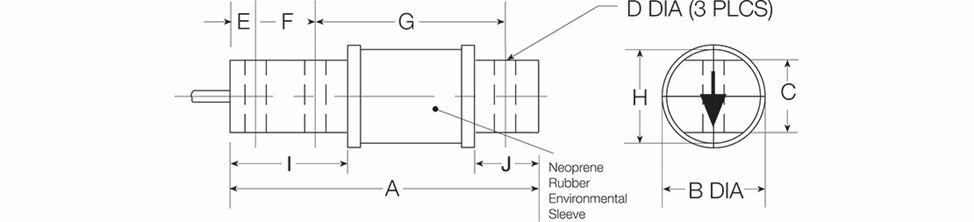

Environmentally sealed with neoprene sleeve, IP65 |
Safe Overload:
150% full scale
Rated Excitation:
5 to 10 VDC (15 V maximum)
Nonlinearity:
0.03% full scale
Hysteresis:
0.02% full scale
Insulation Resistance:
5,000 megohm
Deflection at Capacity:
25 to 50 lb: 0.008 in
100 lb: 0.010 in
150 lb: 0.012 in
250 lb: 0.016 in
500 lb: 0.025 in |
Cable Length:
20 ft
Cable Diameter:
0.200 in polyurethane jacket
Cable Color Code:
Red +Excitation
Black –Excitation
Green +Signal
White –Signal
Warranty:
Two-year limited
Approvals:
cFMus |
