A hermetically sealed, stainless-steel single-ended beam load cell with 20 ft of PTFE jacketed cable for protection in harsh environments. Sealed to IP69K standards, this cell is 3 mV/V and NTEP Certified from 1,000 lb to 10,000 lb.

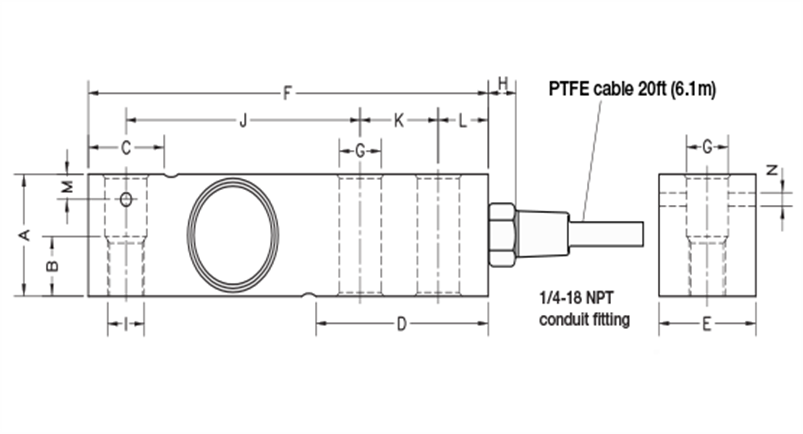

| Rated Capacity | A | B | C | D | E | F | G | H | I | J | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||||||||
| 1,000 to 4,000 | 1.24 | 0.59 | 0.96 | 2.20 | 1.24 | 5.12 | 0.53 | 0.70 | 1/2-20 UNF | 3.00 | 1.00 | 0.62 | 0.25 | 0.13 |
| 5,000 to 10,000 | 1.50 | 0.75 | 1.45 | 2.99 | 1.50 | 6.75 | 0.80 | 0.70 | 3/4-16 UNF | 3.75 | 1.50 | 0.75 | – | – |
| Full Scale Output: 3.0 mV/V ±0.05% current matched Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Hermetically sealed, IP69K Safe Overload: Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: |
Cable Length: 20 ft PTFE cable Cable Color Code: Warranty: Approvals: |
