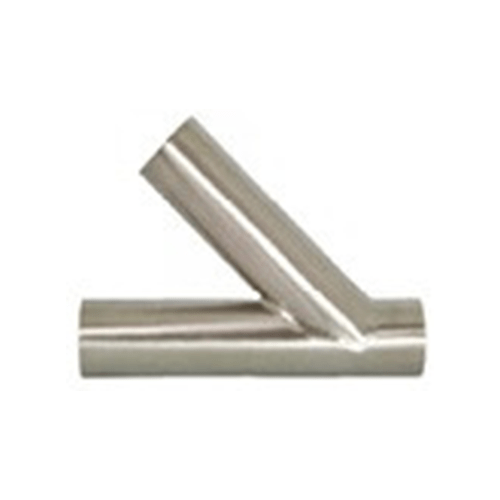

Polished Lateral Fitting
Sanitube Logo

Polished Lateral Fitting

Categories: , , Tags: , , , , , , , ,

The Polished Lateral Fitting is manufactured from the highest quality stainless steel tubing and conforming to conventional tube OD specifications. Sanitube butt weld fittings are engineered to facilitate a wide variety of line connections.

  • Size (Tube OD): 1/2″ to 8″
  • 3-A Certified
  • Alloy:
    • T304
    • T316L
Add to Quote

Description

Polished Lateral Fitting Specifications

  • 3-A Certified

Size
(Tube OD)		 Part Number Dimensions
304L 316L A B C Wall
1   “ 28WA4P-100 28WA6P-100 6.000 1.000 5.000 0.065
1-1/2″ 28WA4P-150 28WA6P-150 7.375 1.188 6.188 0.065
2   “ 28WA4P-200 28WA6P-200 8.750 1.625 7.125 0.065
2-1/2″ 28WA4P-250 28WA6P-250 10.000 1.500 8.500 0.065
3   “ 28WA4P-300 28WA6P-300 10.750 1.875 8.875 0.065
4   “ 28WA4P-400 28WA6P-400 12.812 2.015 10.750 0.083
6   “ 28WA4P-600 28WA6P-600 18.000 3.500 14.500 0.109
