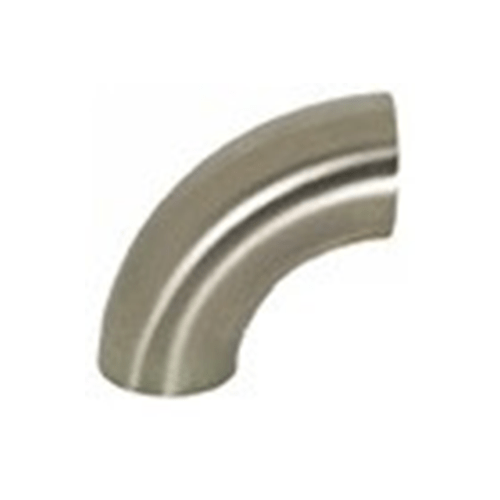

90° Elbow Fitting

Categories: , , Tags: , , , , , , , ,

The 90° Elbow Fitting is manufactured from the highest quality stainless steel tubing and conforming to conventional tube OD specifications. Sanitube butt weld fittings are engineered to facilitate a wide variety of line connections.

  • Size (Tube OD): 1/2″ to 8″
  • 3-A Certified
  • Alloy:
    • T304
    • T316L
Add to Quote

Description

90° Elbow Fitting Specifications

  • 3-A Certified

Size
(Tube OD)		 Part Number Dimensions
304 316L A R Wall
1/2″ 2WC4P-050 2WC6P-050 1.125 1.125 0.065
3/4″ 2WC4P-075 2WC6P-075 1.125 1.125 0.065
1   “ 2WC4P-100 2WC6P-100 1.500 1.500 0.065
1-1/2″ 2WC4P-150 2WC6P-150 2.250 2.250 0.065
2   “ 2WC4P-200 2WC6P-200 3.000 3.000 0.065
2-1/2″ 2WC4P-250 2WC6P-250 3.750 3.750 0.065
3   “ 2WC4P-300 2WC6P-300 4.500 4.500 0.065
4   “ 2WC4P-400 2WC6P-400 6.000 6.000 0.083
6   “ 2WC4P-600 2WC6P-600 9.000 9.000 0.109
8   “ 2WC4P-800 2WC6P-800 12.000 12.000 0.109
