VTS Series Scotch Yoke Actuator
VTS Series Scotch Yoke Actuator is designed to meet challenging and hostile working conditions featuring simple integration and wide torque range. This is realized by interchangleable modules as well as wear resistance and long service life guaranteed design in compliance with international standards.
Features:

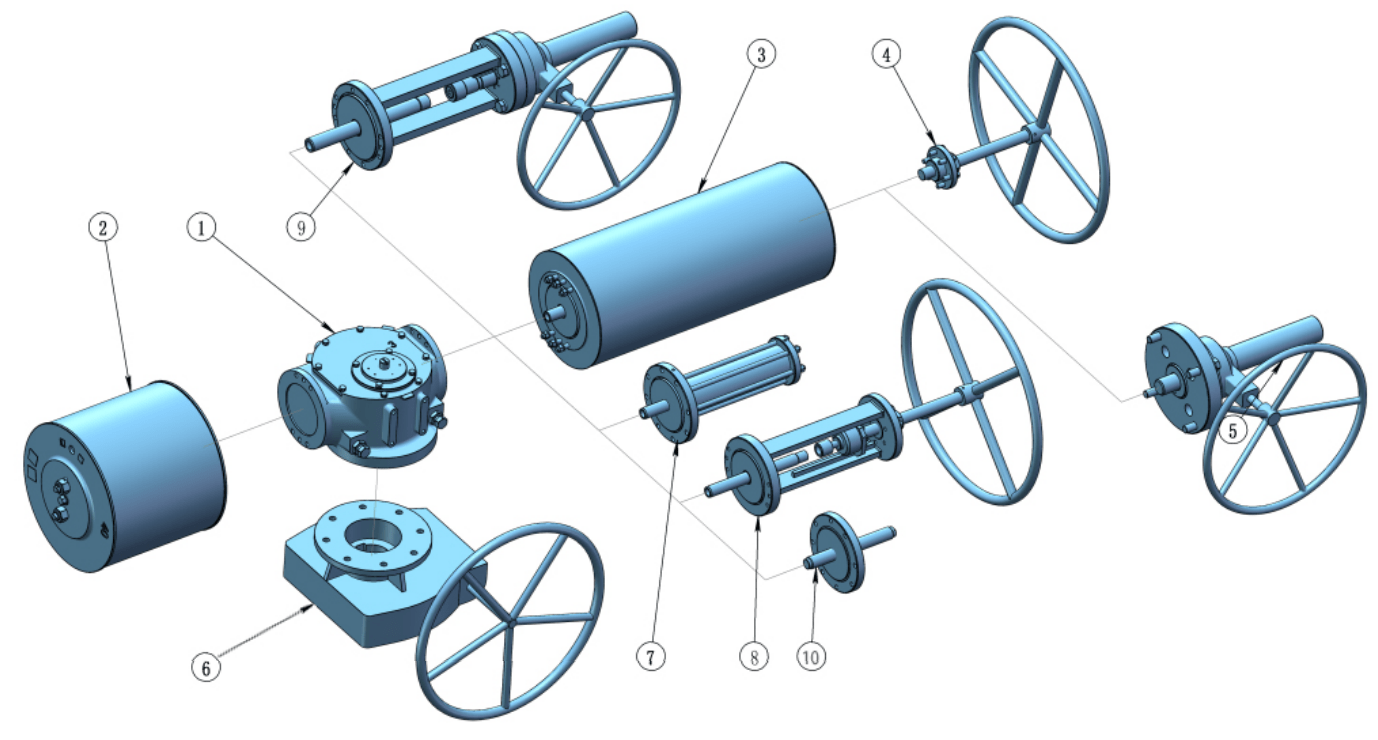

- Modular Design – VTS Series utilizies modular concept with cylinder module, drive module, and spring module interchangeable to achieve required torque
- Operating Ranges –
- Torque Outputs: Up to 1.1m in-lbs
- Operating Pressure: 40 – 110 psig
- Operating Temperature: -40°F – 302°F
- Corrosion Resistant – Cylinder wall of cylinder module is corrosion resistant for use in harsh environments
- Wear Resistant – Self-lubricating bearings on piston rod, guide bar, and other moving parts protect sliding and rotating components
- Internal Tie Rods – Cylinder Module designed with internal tie rods to reduce the size of the cylinder. Tie Rods support and guide piston to prevent eccentric wear of cylinder wall
