TWLMS Twistlock Sensor System

Applications

Container weighing directly on the spreader
Determination of the load distribution in the container
For Reachstacker, Straddle Carrier, Rubber Tired Gantry Crane (RTG), Ship to Shore Cranes (STS)

Special features

Measuring ranges 0 … 6 t up to 0 … 25 t (others possible)
Relative linearity error < 0.5 % F_nom
Type tested in accordance with OIML R60 (certificate R60/2000-A-NL-18.05) with D175
Optimal for retrofitting with simple integration into the crane network through CANopen^® and CAN SAE J1939 technologies
High overload capacity, long service life of the measuring spring, large shock and vibration resistance

Downloads

Data Sheet

Description

The twistlock sensor system is used for weight measurement on spreaders. It is used for the weighing of containers prior to loading. Is also can determine of the weight distribution in the container.

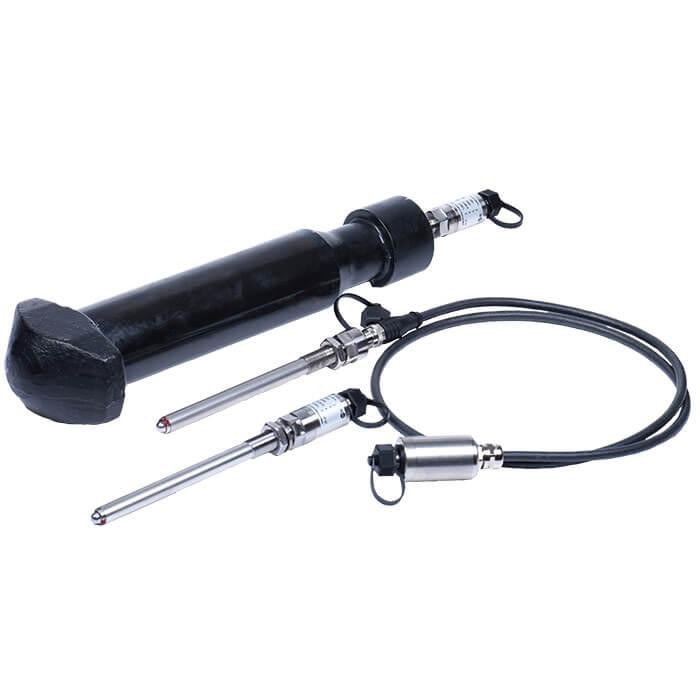

The non-measuring twistlocks in the spreader are replaced by the twistlock sensor system (TWLMS). The system consists of the model F9205 twistlock sensor, fully assembled in the factory in the customer-supplied and pre-drilled twistlock, including adjustment and temperature compensation.

The twistlock sensor of this system is made of high-strength, corrosion-resistant 1.4542 stainless steel, whose properties are particularly suitable for the transducer’s application area. As output signals, there is a choice of active current output (4 … 20 mA) and CANopen^® and CAN SAE J1939 digital outputs.
