Description
The test set is used for the monitoring of electrode forces for spot welding equipment. The set consists of a force transducer and display unit. The force transducer is held between the electrodes to test the forces acting between the electrodes. The concave force introduction surfaces centre the force transducer. The magnitude of the applied force can be read off the indicator when the welding electrodes come together.
The force transducer is designed as a shear beam load cell. It is insensitive to lateral forces and moments. The output signal is fed to the indicator via a cable. This also supplies the force transducer with its operating voltage. The supply voltage can also be taken from a PLC.
Proven thin-film sensor technology is integrated. The laser-welded sensor has all the advantages of conventional glued film strain gauges without being affected by their major disadvantages (temperature behaviour of the adhesive and creep).
Calibration
Force transducer and indicator are calibrated together as a measuring chain. A repeat calibration is recommended every 12 months. This service can be carried out quickly and reliably by WIKA.
Scope of delivery

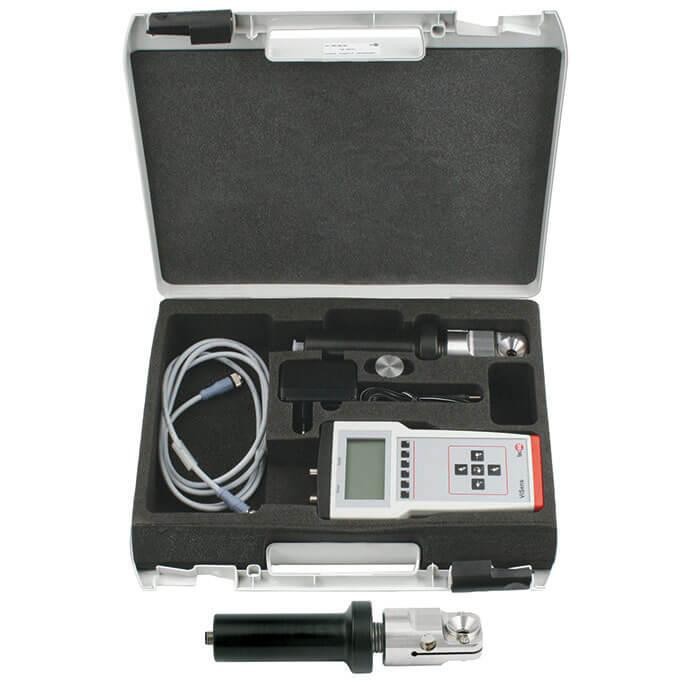

Hand-held indicator, force transducer, plastic case, charger, 2 m signal cable, manufacturer’s test certificate
