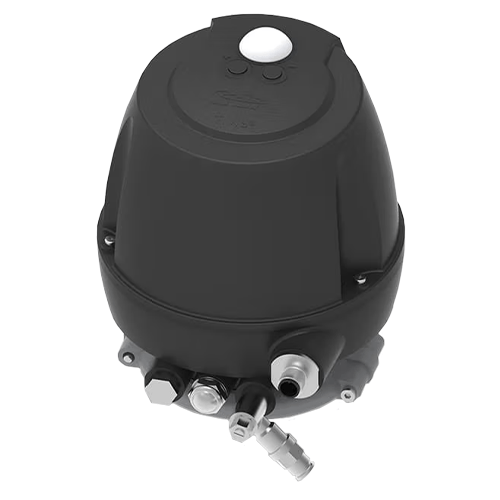

T.VIS® P-15 Position Controller

Categories: , Tags: , , , , , , , , , , , , , , ,

Common features of all T.VIS® variants are:

  • Flexible system for optimum variant configuration for the particular task
  • Internal air supply for high security against failure of the main valve functions because no external air hose is required
  • Characteristic design
  • High protection class (IP65/66, IP67 or IP69k)
  • Ease of cleaning without dead zones, whatever the installation orientation
  • Clear visualization of the valve status via a light dome visible 360°, which is illuminated by colored LEDs
  • Low energy consumption
  • Ease of handling
  • Maintenance-free electronic modules
  • Many special options, e.g.: Air throttles, Cable connections, etc.

For maintenance work on the valve, the control tops can be removed from the valve actuator by loosening two bolts on the clamp, without electrical or pneumatic connections having to be disconnected.

Features

  • Automatic initialization
  • Simple and safe operation
  • Manual operation of the process valve
  • Valve status display by LED
  • Open/close position feedback (optional)
  • Selectable dead band (control hysteresis)
  • High-quality pneumatic fittings
  • High potential for cost reduction
  • Standard protection class IP66
Add to Quote

Description

Structure

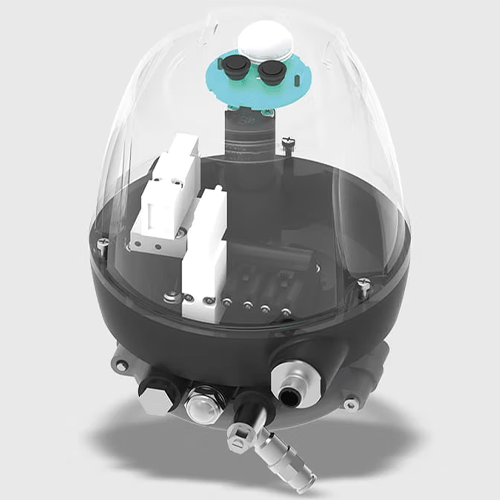

The T.VIS® P-15 is equipped with a precise path measuring system for detecting its position.

The necessary wiring for control and feedback is configured using M12 plug connections that can be accessed externally.

Operation and configuration of the T.VIS® P-15 takes place either by the two push buttons mounted on the hood or, with the cap removed, via the buttons below. The push buttons are secured electronically against inadvertent or incorrect operation, while in operating mode.

The T.VIS® P-15 is equipped as standard with adjustable supply and exhaust air throttles.

Settings

Automatic – following unlocking, simply pressing the two button on the cap of the T.VIS® P-15 starts the initialization process which runs fully automatically. There is no need to open the position controller for this purpose, resulting in particularly quick, easy and safe commissioning of the position controller (on average in < 1 minute).

The following characteristics can be set in the parameter menu directly following the set-up:

  • The open/close position tolerances
  • The control hysteresis
