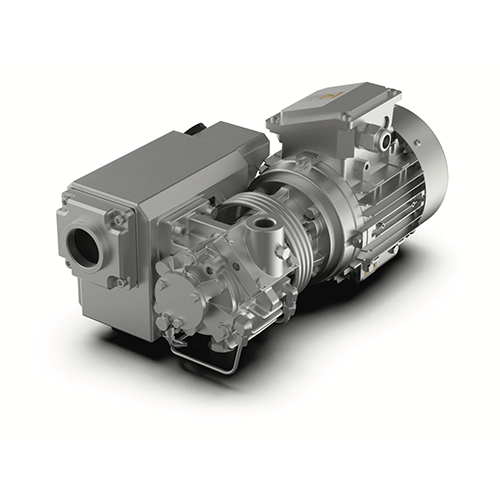

RXA-16 Oil Lubricated Vane Pump

The Republic RXA-16 is an Oil Lubricated Rotary Vane Vacuum Pump capable generating vacuum levels of ~29in HgV at flows of 11cfm. The RXA-16 utilizes phenolic vane technology generate high vacuum with exceptional reliability. Republic’s Oil Lubricated Rotary Vane Pumps create the vacuum levels required for demanding applications as industrial hold-down, material handling, medical vacuum, and food/meat packaging.

Applications:

Food & Packaging

Vacuum packing
Forming
Extrusion of mixed material
Vacuum tumblers
Packaging machines
Central Systems

Laboratory

Medical
Process

Industrial

Autoclaves
Composites
Vacuum hold down
Thermoforming
Degassing
Drying
Vacuum distillation
Vacuum impregnation
Evaporation

Description

Republic Oil Lubricated Rotary Vane Pumps are single stage, dry-cooled and direct driven for continuous operation. These rugged pumps are simple to install and easy to service and maintain. They are available with or without motor to meet your application needs. Republic’s Oil Lubricated Rotary Vane Pumps have a displacement range from 11 to 445 cfm (18 to 756 m3/hr) and maximum vacuum of 29.9″HgV (0.5 torr).

Air Flow: From 11 cfm to 445 cfm
Vacuum Capacity: Up to 29.9″ HgV

Key Features:

Single stage, direct-driven
Integral exhaust filter, oil free discharge air
Oil Level Sightglass
Air-cooled, no water required
Simple installation
Low noise levels
Compact design

RXA-16 Oil Lubricated Vane Pump
