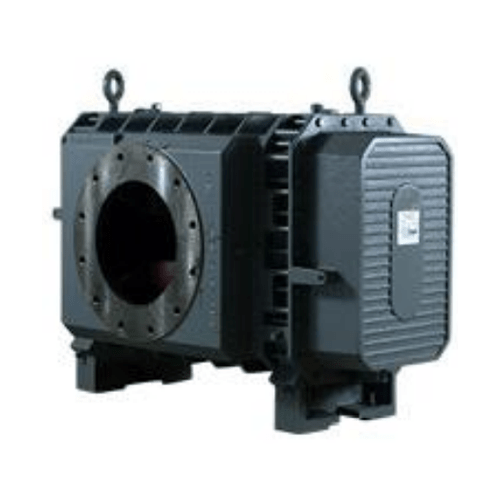

Roots RAM-VJ Blowers

Categories: , Tags: , , , , ,

Patented WHISPAIR™ Water Sealed Vacuum Exhausters include an inlet spray nozzle and seal water flow meter for water injection. It is designed to handle a limited quantity of liquid without damage. This permits introduction of sealing water at the blower inlet to improve operating efficiency and reduce internal temperature rise.

WHISPAIR blowers reduce noise and power loss by utilizing an exclusive wrap around plenum and proprietary WHISPAIR jet to control pressure equalization-feeding backflow in the direction of impeller movement, thereby aiding rotation. This design results in longer bearing life, lower vibration, and reduces noise up to 5 dBA pressure or vacuum.

Roots RAM-VJ Blowers Features

  • Heavy-duty unit with integral-shaft ductile iron impellers with an involute profile
  • Rigid one-piece casing and headplates are grey iron
  • Drive end cover and end cover are aluminum
  • Carburized and ground alloy steel spur timing gears
  • Cylindrical roller bearings
  • Piston rings reduce air leakage
  • Lip type oil seals prevent lubrication from entering the air chamber.
  • Splash oil lubricated gears on drive and gear ends
  • Detachable steel mounting feet
  • Horizontal configurations available
  • 2-Year Warranty
