Roll-On Expanding Ferrule

Sanitube stainless steel clamp fittings create a quick clamp union for instant assembly or disassembly of secure, leak proof connections. With a gasket in place between two ferrule ends, a clamp is secured around the joint to complete the connection. Clamp connections can be secured without the use of tools when using Sanitube wing nut style clamps.

  • 3-A Certified

Description

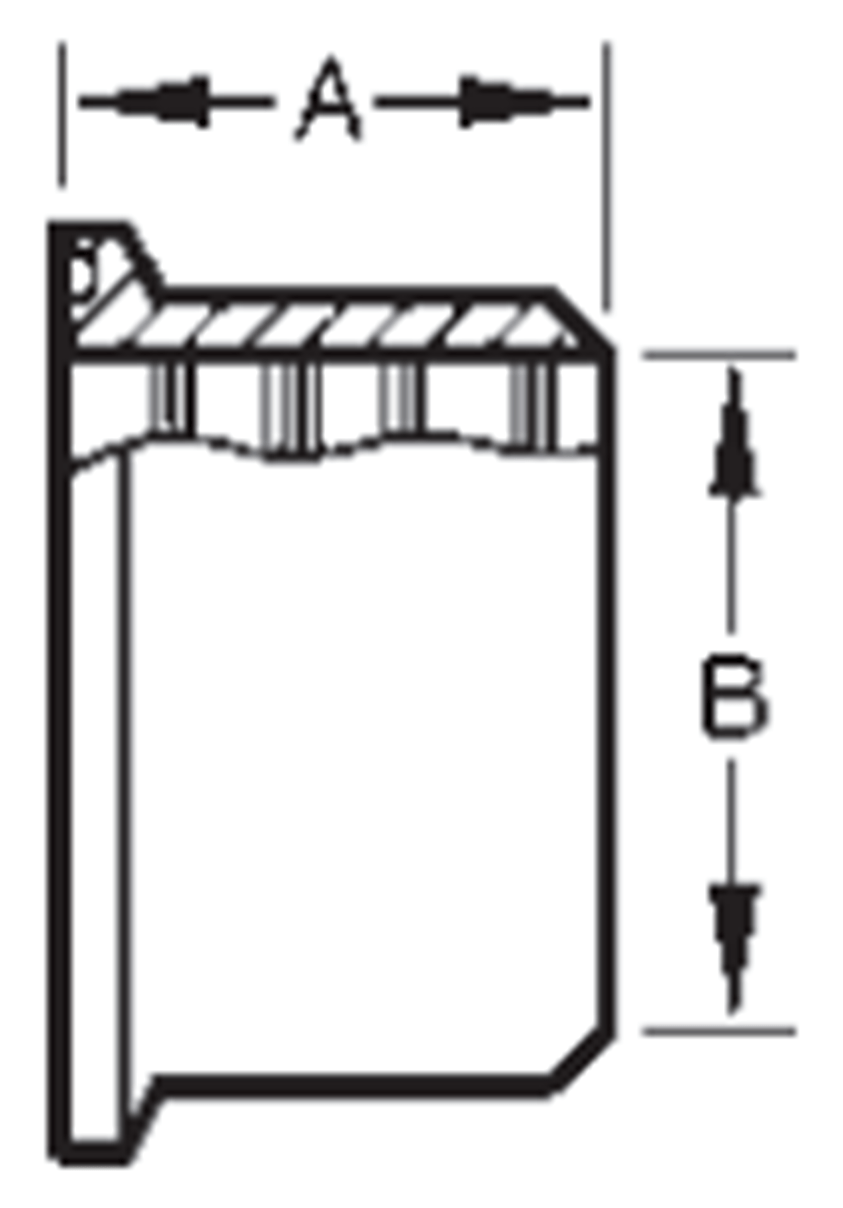

Roll-On Expanding Ferrule Specifications

Size (Tube OD) Part Number Dimensions
304L 316L A B
1   “ 14RMP-100 0.750 1.005
1-1/2″ 14RPM-150 1.125 1.505
2   “ 14RPM-200 1.312 2.005
2-1/2″ 14RPM-250 1.375 2.505
3   “ 14RPM-300 1.437 3.005
4   “ 14RPM-400 1.500 4.005
6   “ 14RPM-600 2.000 6.005
