Clamp Short Outlet Tee

Sanitube stainless steel clamp fittings create a quick clamp union for instant assembly or disassembly of secure, leak proof connections. With a gasket in place between two ferrule ends, a clamp is secured around the joint to complete the connection. Clamp connections can be secured without the use of tools when using Sanitube wing nut style clamps.

  • 3-A Certified

Description

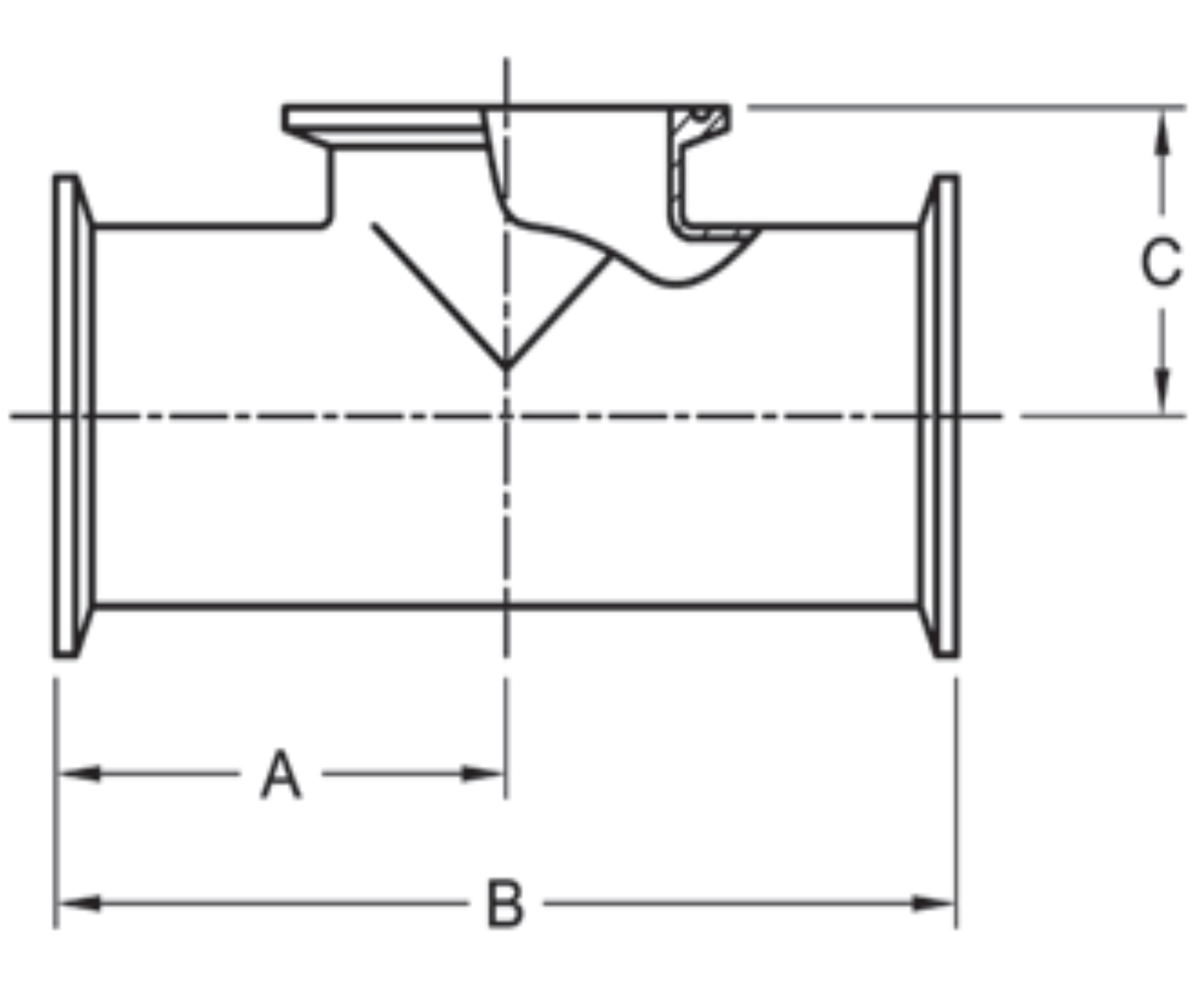

Clamp Short Outlet Tee Specifications

Size (Tube OD) Part Number Dimensions
304L 316L A B C
1/2″ 7MPS6-050 2.375 4.750 0.875
3/4″ 7MPS6-075 2.750 5.500 1.000
1   “ 7MPS4-100 7MPS6-100 2.375 4.750 1.125
1-1/2″ 7MPS4-150 7MPS6-150 2.750 5.500 1.375
2   “ 7MPS4-200 7MPS6-200 3.500 7.000 1.625
2-1/2″ 7MPS4-250 7MPS6-250 3.500 7.000 1.875
3   “ 7MPS4-300 7MPS6-300 3.750 7.500 2.125
4   “ 7MPS4-400 7MPS6-400 4.500 9.000 2.750
6   “ 7MPS4-600 7MPS6-600 6.500 13.000 4.000
8   “ 7MPS4-800 7MPS6-800 7.875 15.750 5.000
