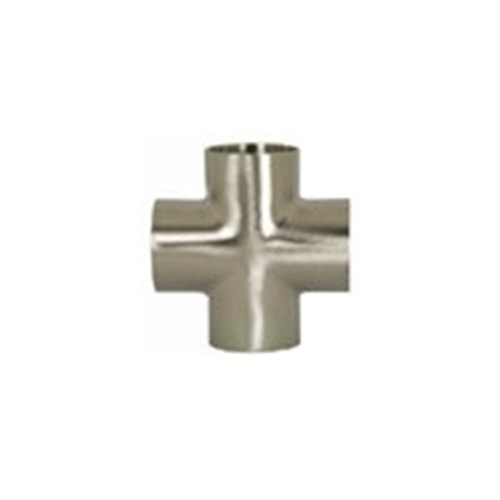

Polished Cross Fitting

Categories: , , Tags: , , , , , , , ,

Manufactured from the highest quality stainless steel tubing and conforming to conventional tube OD specifications, Sanitube butt weld fittings are engineered to facilitate a wide variety of line connections.

  • Size (Tube OD): 1/2″ to 8″
  • Alloy:
    • T304
Add to Quote

Description

Polished Cross Fitting Specifications

  • 3-A Certified

Size
(Tube OD)		 Part Number Dimensions
304L 316L A B Wall
1   “ 9W4P-100 9W6P-100 2.250 1.125 0.065
1-1/2″ 9W4P-150 9W6P-150 3.312 1.656 0.065
2   “ 9W4P-200 9W6P-200 4.125 2.062 0.065
2-1/2″ 9W4P-250 9W6P-250 4.687 2.343 0.065
3   “ 9W4P-300 9W6P-300 5.187 2.593 0.065
4   “ 9W4P-400 9W6P-400 6.875 3.437 0.083
