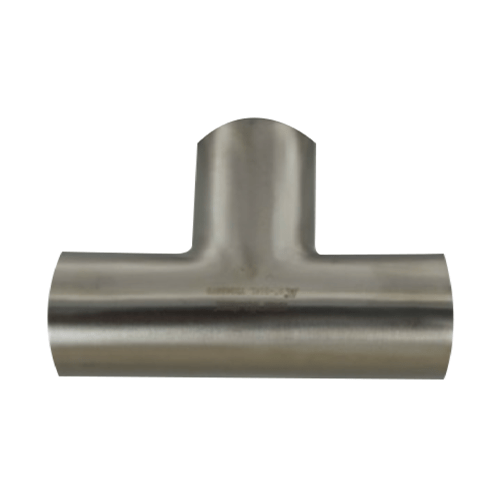

Long Tee Fitting

Categories: , , Tags: , , , , , , , ,

Manufactured from the highest quality stainless steel tubing and conforming to conventional tube OD specifications, Sanitube butt weld fittings are engineered to facilitate a wide variety of line connections.

  • Size (Tube OD): 1/2″ to 8″
  • Alloy:
    • T304
    • T316L
Add to Quote

Description

Long Tee Fitting Specifications

  • 3-A Certified

Size
(Tube OD)		 Part Number Dimensions
304L 316L A B Wall
1/2″ — 7WL6P-050 3.750 1.875 0.065
3/4″ — 7WL6P-075 3.750 1.875 0.065
1   “ 7WL4P-100 7WL6P-100 3.750 1.875 0.065
1-1/2″ 7WL4P-150 7WL6P-150 4.500 2.250 0.065
2   “ 7WL4P-200 7WL6P-200 6.000 3.000 0.065
2-1/2″ 7WL4P-250 7WL6P-250 6.000 3.000 0.065
3   “ 7WL4P-300 7WL6P-300 6.500 3.250 0.065
4   “ 7WL4P-400 7WL6P-400 7.750 3.875 0.083
6   “ 7WL4P-600 7WL6P-600 11.250 5.625 0.109
8   “ 7WL4P-800 7WL6P-800 14.000 7.000 0.109
