Description

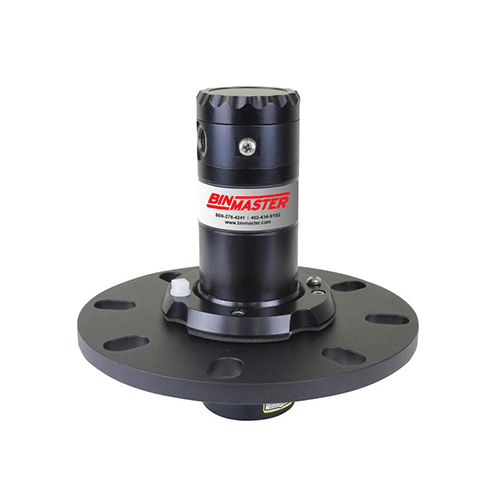

Laser Level Sensor: Narrow beam level measurement up to 160 feet

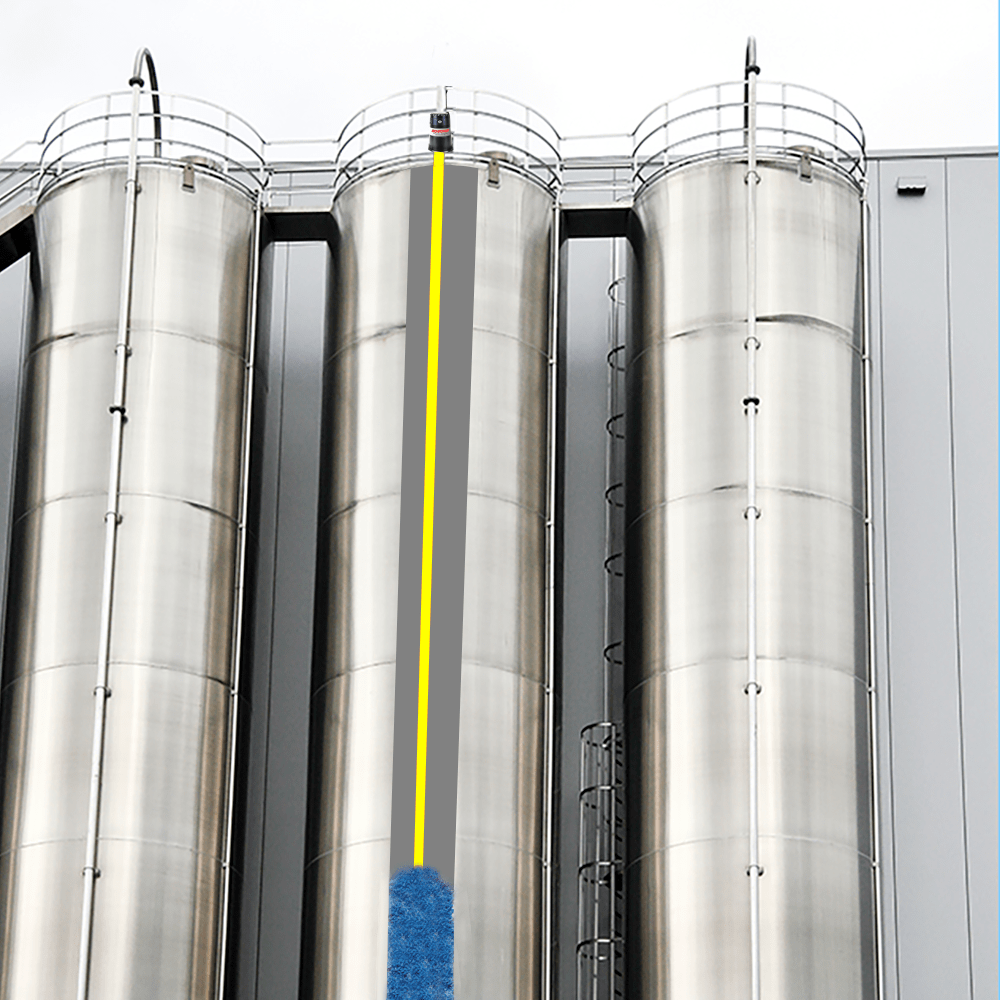

The LL-100 measures in a tight 1° beam ideal for narrow vessels or tight spaces.
Do you have a narrow silo with structure to avoid?
Need inventory control with a fast update rate and high accuracy?
Use this non-contact level sensor for:
- Inventory management, plugged chute detection, and monitoring buildup
- Low-dust bulk solids, pellets, or granular materials of all material dielectrics
- Opaque liquids, even those with heavy vapors or stored under pressure
Features that make the LL-100 easy to use:
- Adjustable mounting flange flexible up to 10°
- Narrow beam can be directed to the output or bottom of the silo
- Unaffected by surface angle, slope, texture, granularity, or material color
- Accurate up to +/- 1” with 8 readings per second
- Easily configured in the field using a USB port
- Configuration can be performed without filling or emptying the silo
- Integrated dust protection for minimal maintenance
- Air purge option to keep lenses free of dust
Low-dust vessels in many industries and materials:
- Minerals, mining, aggregate storage, and rock crushers
- Plastics, chemicals, and fertilizers
- Grain storage and food processing
- Pulp, paper, wood pellet, and biomass
Get fast, accurate laser level measurement in narrow vessels now!
