Description

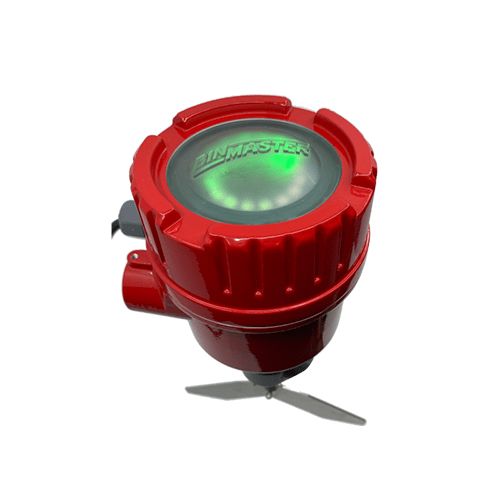

Rotary Level Indicator with Built-in LED Indicator Light
- The BMRX-300 rotary level switch is equipped with a prominent LED indicator light built into its design.
- LED lights signal the paddle’s movement status and indicate when the bin is full or empty.
Highly visible LED indicator
- The LED light is integrated into the lid of the rotary, eliminating the need for additional wiring to an external light source.
- When the BMRX-300 is affixed to the side of the vessel, the bright green or red light remains visible from a distance of up to 100 feet.
Green = Turning, Red = Stopped
- The LED light shines green during rotation.
- A relay activates to signify a status change.
- This causes the light to switch to red when the paddle is stopped by material accumulation.
De-engergized Motor State
- When the paddle is covered and stops turning, the motor de-energizes.
- This protects the motor from unnecessary wear-and-tear to ensure a long service life.
Fail-safe operation
- The BMRX-300 distinguishes itself as an exceptional rotary for process control with its fail-safe operation.
- This includes self-diagnostics and immediate corrective responses to failures.
- The LED light serves as a visual indicator for faults, covered conditions, or rotating status.
Dual switching outputs
- The BMRX-300 featuring a DPDT relay that enables users to configure two switching outputs.
- This versatile switch can control two separate circuits and offers two location options for each circuit.
- For instance, one output can be designated for a covered condition while the other corresponds to an uncovered condition.
Enclosure defies moisture
- The bright red enclosure of the BMRX-300 rotates to direct conduit entries downward upon installation.
- This installation helps to safeguard internal components from moisture and prolong service life.
- This design ensures protection against environmental factors and enhances the device’s durability.
