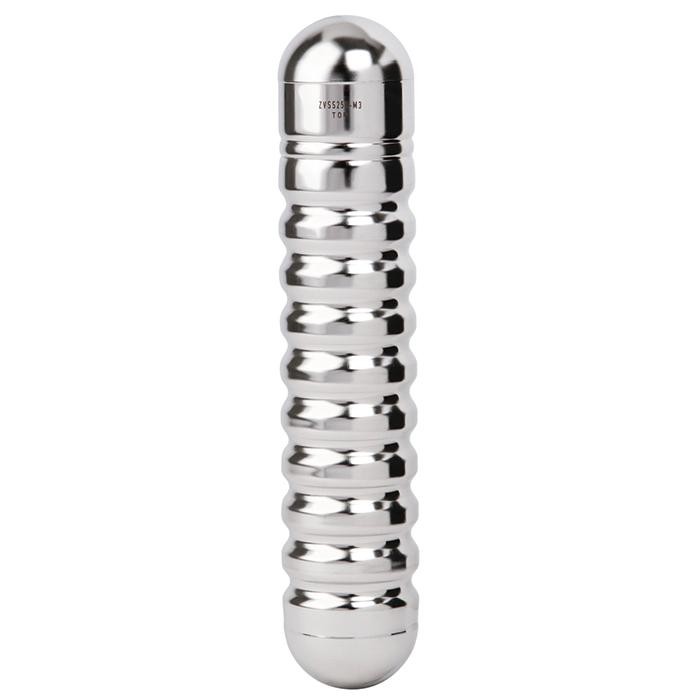

BFT Float for Bypass Level Indicators

Applications

Float for the monitoring of liquids in bypass level indicators
Individual design and corrosion resistant materials make the products suitable for a broad range of applications
Chemical, petrochemical, natural gas, offshore, shipbuilding, machine building, power generating equipment, power plants
Process water and drinking water treatment, food industry, pharmaceutical industry

Special features

Sealed, pressure retaining design
Density range from 340 kg/m³
Pressures up to 400 bar
Medium temperatures from -196 … +450 °C
Versions for interface layer

Downloads

Data Sheet

Description

The model BFT float serves for the monitoring of liquids in bypass level indicators. The magnetic system built into the float transmits the liquid level, contact-free, to externally mounted displays, switches and sensors. Due to its omni-directional, radial magnetic field, a guide within the tube is not needed.

The design will depend on the application, chemical resistance and the 3 physical quantities of pressure, temperature and density.
