Plate & Frame Heat Exchangers in the Food Industry

In the fast-paced and highly regulated food industry, maintaining the right temperature during production is essential. Heat exchangers play a crucial role in preserving product quality, safety, and efficiency. Plate and Frame Heat Exchangers have gained widespread popularity in the food sector due to their versatility, high efficiency, and compact design.

What Are Plate and Frame Heat Exchangers?

A plate and frame heat exchanger consists of a series of metal plates arranged in a stack. These plates are separated by gaskets that create flow channels for the two fluids (often one being hot and the other cold) to pass through. The plates have corrugated patterns that promote turbulence, enhancing heat transfer between the fluids.

The frame is the supporting structure that holds the plates together, allowing them to be easily assembled or disassembled for cleaning or maintenance. The gaskets ensure that the fluids do not mix, and the heat exchange process happens efficiently as the fluids flow in counter-current directions.

Popularity of Plate and Frame Heat Exchangers in the Food Industry

1. Compact Design: Plate and frame heat exchangers take up less space than other types of heat exchangers. This is essential in the food industry where space is often limited. Their modular design also allows for flexibility. You can easily scale up or down the size and capacity of your plate & frame heat exchangers based on production needs.
2. High Efficiency: The corrugated plates and the turbulent flow they create significantly increase heat transfer rates. This efficiency means that food manufacturers can reach desired temperatures faster while minimizing energy consumption.
3. Ease of Maintenance: Plate and frame heat exchangers are easier to clean compared to other types. This is crucial in the food industry which must maintain sanitary conditions. They can be disassembled to remove any deposits or contaminants. This ensures a hygienic environment and prevents cross-contamination between food products.
4. Customization: The modular design allows for customization to suit different types of processes. This includes pasteurization, cooling, or heating. The plates can be adjusted to accommodate different flow rates and temperature requirements, ensuring optimal performance for various food applications.
5. Energy Savings: The enhanced heat transfer capabilities of plate and frame exchangers allow food processors to reclaim and reuse heat. This ability reduces the need for additional heating or cooling systems. This leads to significant energy savings, which is not only cost-effective but also more environmentally friendly.

Applications of Plate & Frame Heat Exchangers in the Food Industry

Plate and frame heat exchangers are employed across a wide range of food production processes, including:

1. Pasteurization:

In the food industry, pasteurization is a critical process for extending the shelf life of products like dairy, fruit juices, sauces, and soups. Plate and frame heat exchangers are ideal for pasteurization because they can quickly heat the product to the desired temperature. Then, they can cool it down efficiently, all while maintaining the integrity and quality of the product.

2. Cooling and Heating:

Whether it’s cooling freshly baked goods, chilling milk, or heating soups and sauces, plate and frame heat exchangers are commonly used. Their ability to transfer heat efficiently helps food processors achieve precise temperature control. This is critical for maintaining product quality and consistency.

3. Washing and Sterilization:

In food processing facilities, cleaning and sterilizing equipment is an ongoing requirement to maintain safety and hygiene. Plate and frame heat exchangers can be used to heat or cool cleaning fluids, such as water or sterilizing agents, used in these processes.

4. Energy Recovery Systems:

Energy recovery is an essential aspect of modern food production. Plate and frame heat exchangers enable the recovery of heat from processes like cooking, fermentation, or pasteurization. This heat can then be reused to preheat incoming raw materials, reducing overall energy consumption and lowering operating costs.

Key Considerations for Choosing Plate and Frame Heat Exchangers

While plate and frame heat exchangers offer numerous benefits, selecting the right one for your food processing needs requires careful consideration:

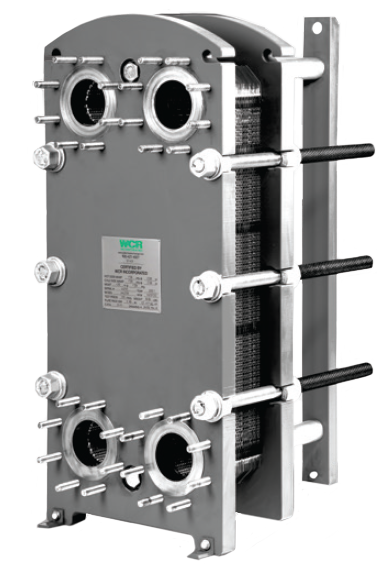

1. Material Selection: Food-grade materials, such as stainless steel, are typically used for the plates and frame to ensure safety, durability, and resistance to corrosion. Stainless steel is also easy to clean, which is essential for food safety. WCR offers a sanitary version of their plate & frame heat exchanger!
2. Flow Arrangement: Plate and frame heat exchangers can have various flow arrangements, such as countercurrent or parallel flow. Countercurrent flow, where the fluids move in opposite directions, is generally more efficient for heat transfer and is often preferred in food applications.
3. Size and Capacity: The size and capacity of the heat exchanger should align with the scale of production. Plate and frame heat exchangers are modular. The number of plates can be adjusted to meet the desired thermal load. This makes them adaptable to both small-scale and large-scale operations.
4. Cleaning and Maintenance: Given the food industry’s hygiene standards, the heat exchanger must be easy to clean and maintain. Plate and frame heat exchangers can be disassembled for cleaning. Regular maintenance will ensure that the system continues to operate efficiently and hygienically.

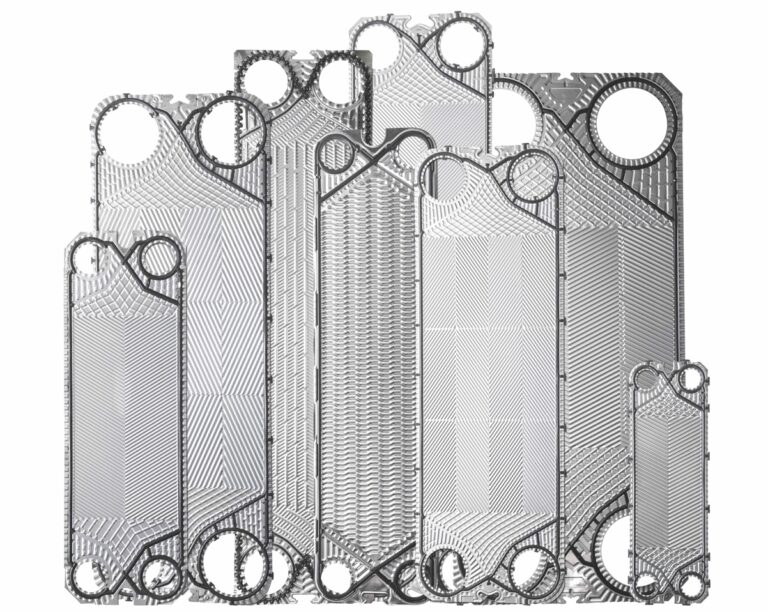

We’ve partnered with WCR, a vendor that has the ability to manufacture replacement plates for virtually any brand of heat exchanger. Recently, we received a call from a customer whose Alfa Laval heat exchangers were down due to faulty plates. This meant their entire production was shut down until they could get replacement plates, costing them hundreds of thousands of dollars a day! Alfa Laval could not get them replacement plates until days later. After the customer reached out to us for a solution, we contacted WCR on lead times. They were able to ship out replacement plates overnight, straight to their facility. They were up and running within 8 hours of first contact with us!

5. Temperature and Pressure: Different food processing operations have varying temperature and pressure requirements. Plate and frame heat exchangers can handle high temperatures and moderate pressures. But it’s important to ensure that the specific model chosen can meet the operational conditions of the food process.

Do you need a Plate & Frame Heat Exchanger for use in the Food Industry?

Plate and frame heat exchangers have become an indispensable part of the food industry due to their high efficiency, compact design, and ease of maintenance. They offer a reliable solution for processes like pasteurization, cooling, heating, and energy recovery. They help food manufacturers optimize their operations while maintaining product quality and safety. By choosing the right heat exchanger for their needs, food processors can achieve better energy efficiency, lower operating costs, and ensure the consistent delivery of high-quality products to consumers.

In an industry where precision and efficiency are key, the plate and frame heat exchanger provides a winning combination of performance and practicality. They ensure that the food industry can continue to meet the growing demand for safe, high-quality products.
