Tedea-Huntleigh 9010 Single Point Fluid Damped Load Cell
Rice Lake Weighing Systems

Tedea-Huntleigh 9010 Single Point Fluid Damped Load Cell

Categories: , Tags: , , , , ,

A self-contained weighing module for use in repeated shock-loading applications or where fast weighing and settling times are required. Each is custom manufactured per specific application requirements. Capacities range from 3 kg to 50 kg.

  • The special fluid damped operation is particularly well-suited for applications where quick weighment is required.  e.g. Checkweighers
  • 9010 Load Cells are custom-manufactured per specific applications requirements
  • Use the Applications Definitions Form below to define your applications
  • Available in stainless steel with breather vent options for washdown applications

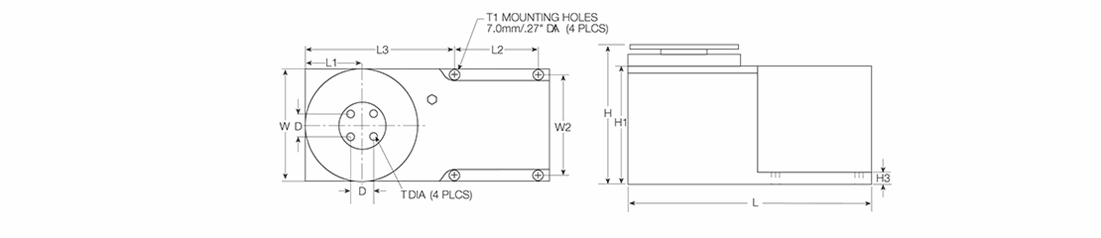

Rated Capacity D H H1 H3 L L1 L2 L3 T W W2
kg/mm
3 to 50 19.1 115.2 97.3 10.00 199.5 46.00 71.5 119.8 1/4-20 UNC x 20 DP 92.00 82.00



Add to Quote

Description

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 5) ohm

Input Resistance:
415 (± 15) ohm

Material/Finish:
Aluminum

Temperature:
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP65

 Safe Overload:
800% full scale downward,
400% full scale upward

Rated Excitation:
15 VDC (15 V maximum)

Combined Error:
0.03% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
3 ft

 Cable Diameter:
0.370 in
PVC jacket

Cable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal
Blue +Sense
Brown –Sense

Warranty:
One-year limited

Approvals:
cFMus
