Designed to decrease weighing time and improve weighing accuracy in high-speed weighing applications. When damped, this model endures harsh conditions with shock-loading applications longer than undamped models. Sealed for protection in washdown situations. Capacities range from 2 kg to 50 kg.

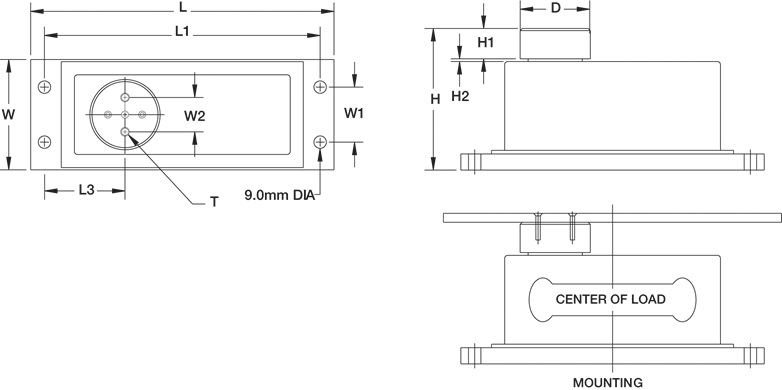

| Rated Capacity | D | H | H1 | H2 | L | L1 | L3 | T | W | W1 | W2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| kg/mm | |||||||||||
| 2 to 50 | 50 dia | 115.0 | 21.0 | 2.0 | 220.0 | 200.0 | 58.5 | 1/4-20 UNC x 10 DP | 80.0 | 40.0 | 25.0 |
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Environmentally sealed, IP66 Safe Overload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: |
Cable Diameter: 0.370 in PVC jacket Cable Color Code: Warranty: Approvals: |
