Low-profile planar beam designed for a range of capacities and direct mounting in platform scales. Making this model suitable for use in a wide range of applications.

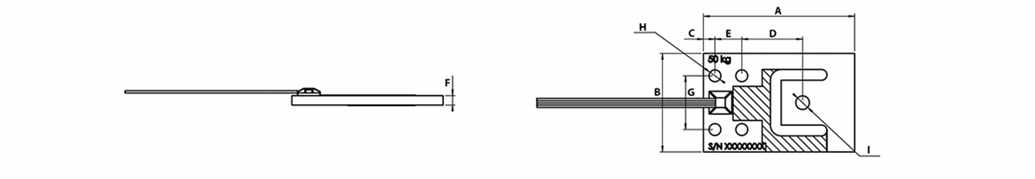

| Rated Capacity | A | B | C | D | E | F | G | H | I |
|---|---|---|---|---|---|---|---|---|---|
| kg/mm | |||||||||
| 7.5 | 70.0 | 39.0 | 4.9 | 28.0 | 14.0 | 2.5 | 27.8 | 5.1 | 5.1 |
| 15.0 | 70.0 | 39.0 | 4.9 | 28.0 | 14.0 | 4.1 | 27.8 | 5.1 | 5.1 |
| 37.5 | 76.2 | 44.5 | 6.0 | 29.3 | 15.0 | 4.8 | 30.0 | 6.6 | 6.2 |
| 50.0 | 84.5 | 55.0 | 6.4 | 34.0 | 15.0 | 5.3 | 30.0 | 6.6 | 7.6 |
| 75.0 | 84.5 | 55.0 | 6.4 | 34.0 | 15.0 | 6.4 | 30.0 | 6.6 | 7.6 |
| 150.0 | 107.5 | 70.0 | 7.8 | 45.9 | 22.8 | 8.0 | 44.5 | 8.1 | 8.2 |
| Full Scale Output: 1.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Environmentally sealed, IP65 Safe Overload: Rated Excitation: Insulation Resistance: Cable Length: |
Cable Color Code: Green +Excitation Black –Excitation Red +Signal White –Signal Warranty: Approvals: |
