Welded stainless steel construction, welded sealing and polyurethane shielded cable enables function in harsh environments while maintaining its operating specifications. Suitable for low-profile platforms, weighing and packing machines, electromechanical conversions and general-purpose weighing applications. Capacities range from 5 kg to 500 kg.

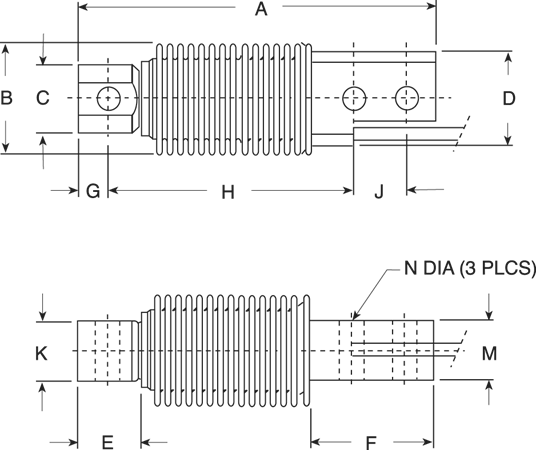

| Rated Capacity | A | B | C | D | E | F | G | H | J | K | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg/mm | ||||||||||||
| 5 to 500 | 120.0 | 40.0 | 23.0 | 32.0 | 20.5 | 45.5 | 10.0 | 82.0 | 18.0 | 20.0 | 20.0 | 8.2 |
| Full Scale Output: 2.0 mV/VOutput Resistance: 350 (± 3) ohm Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scaleRated Excitation: 5 to 10 VDC (15 V maximum) Combined Error: Insulation Resistance: Cable Length: Cable Diameter: |
Cable Color Code: Green +Excitation Black –Excitation Red +Signal White –SignalPlatform Size: 13.78 × 13.78 in Warranty: Approvals: |
