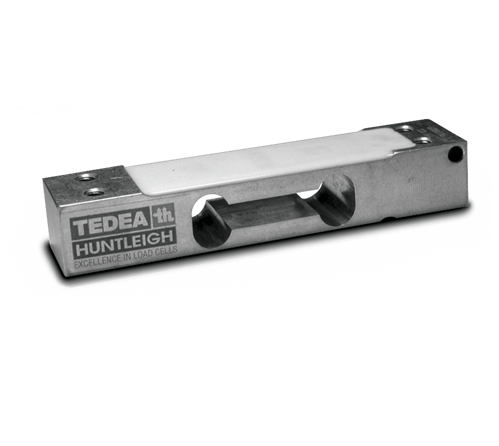

Very low profile, single-point load cell designed for direct mounting in low-cost platforms. Anodized aluminum construction is combined with two-beam machined technology to provide an affordable load cell option. Capacities range from 3 to 35 kg. Complete with 1.5 ft or 10 ft of load cell cable.

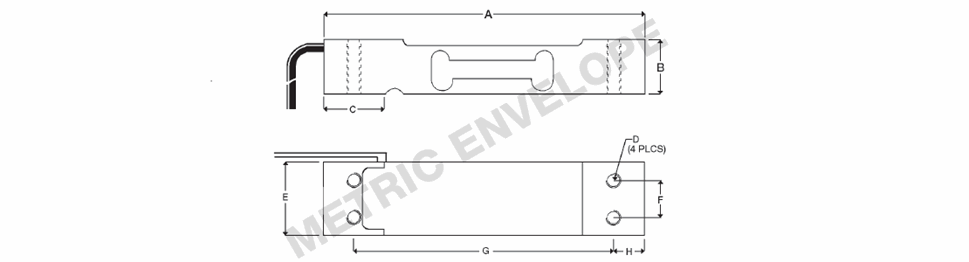

| Rated Capacity | A | B | C | D | E | F | G | H |
|---|---|---|---|---|---|---|---|---|
| kg/mm | ||||||||
| 3 to 7 | 130.0 | 22.0 | 25.0 | M6 x 1.0 | 25.4 | 15.0 | 106.0 | 12.0 |
| 10 to 30 | 130.0 | 22.0 | 25.0 | M6 x 1.0 | 30.0 | 15.0 | 106.0 | 12.0 |
| 35 | 130.0 | 22.0 | 25.0 | M6 x 1.0 | 40.0 | 15.0 | 106.0 | 12.0 |
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Rated Excitation: Combined Error: Insulation Resistance: Cable Length: Cable Diameter: |
Cable Color Code: Green +Excitation Black –Excitation Red +Signal White –Signal Platform Size: Warranty: Approvals: |
