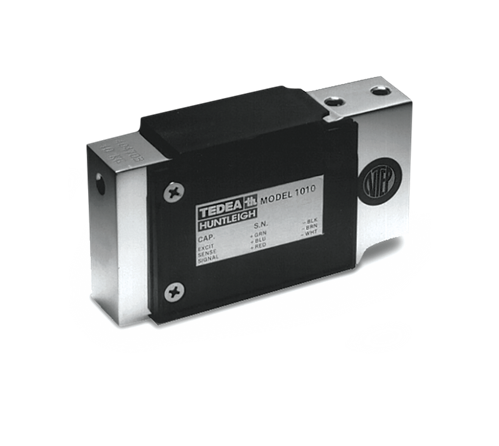

Off-center loading load cell designed for direct mounting of a weighing platform and simplified construction of platform scales. Long-term stability and durability are maintained. Load cells with potted cavities are available for improved performance in damp environments. The model 1015 has a balanced bridge for applications where multiple cells are used. Capacities range from 3 to 90 kg.

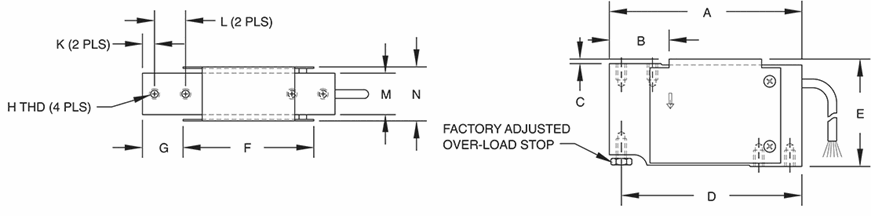

| Rated Capacity | A | B | C | D | E | F | G | H | K | L | M | N |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg/mm | ||||||||||||
| 3 to 90 | 118.0 | 34.0 | 3.0 | 110.5 | 66.0 | 80.0 | 25.0 | (1010) 1/4-20 UNC x 13 DP (1015) M6 Metric |
7.5 | 19.1 | 25.4 | 33.5 |
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% at center of loading point, full scale Rated Excitation: Combined Error: Deflection at Capacity: Cable Length: Cable Diameter: |
Cable Color Code: Green +Excitation Black –Excitation Red +Signal White –Signal Blue +Sense Brown –Sense Platform Size: Warranty: Approvals: |
