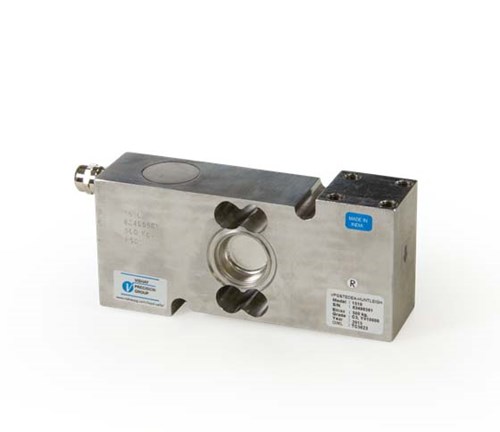

Tedea-Huntleigh 1510 Stainless Steel Single Point Load Cell

A stainless steel, welded-seal cell ideally suited for washdown applications. Capacities range from 100 kg to 500 kg.

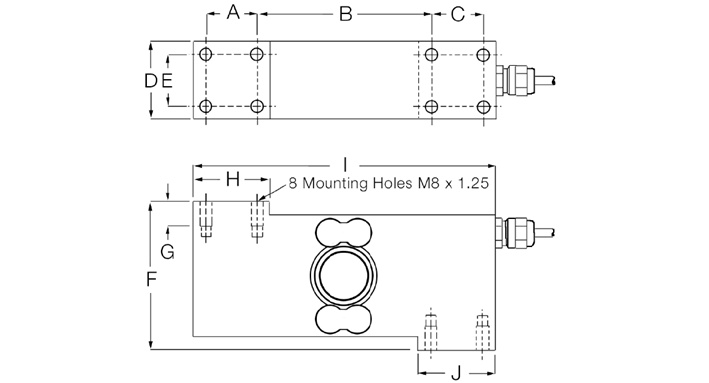

Rated Capacity	A	B	C	D	E	F	G	H	I	J
kg/mm
100 to 500	25.4	86.3	25.4	38.1	25.4	72.8	11.9	38.1	149.9	38.1

Description

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
380 (± 10) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Welded-seal, IP68

Safe Overload:
150% at center loading point, full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.020% full scale

Insulation Resistance:
2,000 megohm

Cable Length:
10 ft

Cable Diameter:
0.220 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal
Blue +Sense
Brown –Sense

Platform Size:
23.62 × 23.62 in

Warranty:
One-year limited

Approvals:
cFMus
OIML
NTEP
