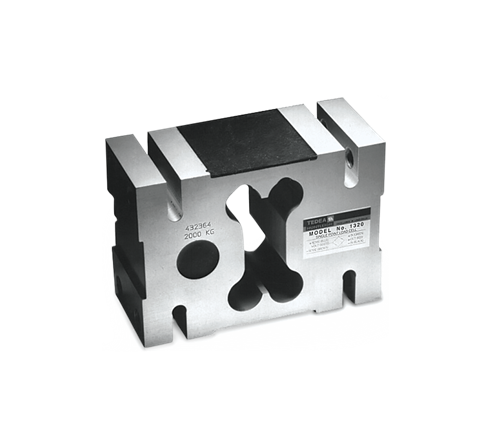

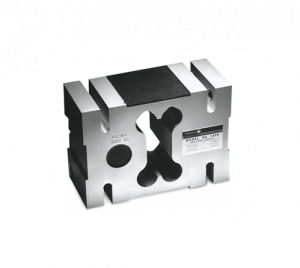

Single-point load cell featuring individual adjustment to eliminate corner errors and direct mounting of low-profile platforms to simplify the construction of floor scales, weigh bars, hanging scales and other types of weighing devices. High capacity range from 1,000 kg to 2,000 kg.

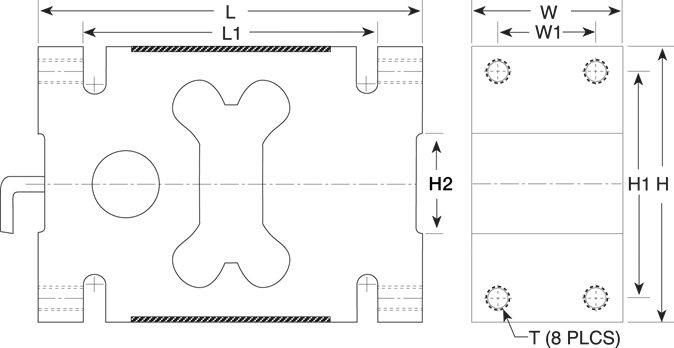

| Rated Capacity | H | H1 | H2 | L | L1 | T | W | W1 |
|---|---|---|---|---|---|---|---|---|
| kg/mm | ||||||||
| 1,000 to 2,000 | 126.0 | 95.0 | 45.0 | 176.0 | 135.0 | M16 x 2-6H | 76.0 | 46.0 |
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: Max. Platform Size: Cable Length: |
Cable Diameter: 0.220 in Polyurethane jacket Cable Color Code: Warranty: Approvals: |
