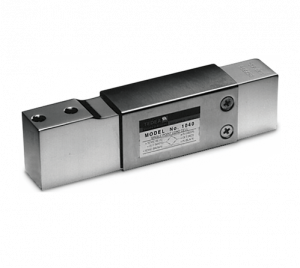

Low-profile, off-center loading load cell. Designed for direct mounting of weighing platforms, hanging scales and other low capacity beam applications. Long-term stability and durability are maintained. Load cells with potted cavities are available for improved performance in damp environments. Capacities range from 5 to 100 kg.

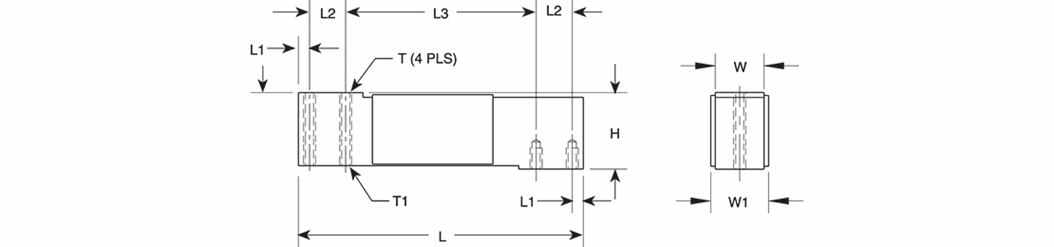

| Rated Capacity | H | L | L1 | L2 | L3 | T | T1 | W | W1 |
|---|---|---|---|---|---|---|---|---|---|
| kg/mm | |||||||||
| 5 to 100 | 40.0 | 150.0 | 6.0 | 19.1 | 100.0 | 1/4-20 UNC x 10 DP | 1/4-28 UNF x 10 DP | 25.4 | 29.4 |
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 200% at center loading point, full scale Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: Cable Length: Cable Diameter: |
Cable Color Code: Green +Excitation Black –Excitation Red +Signal White –Signal Blue +Sense Brown –Sense Platform Size: Warranty: Approvals: |
