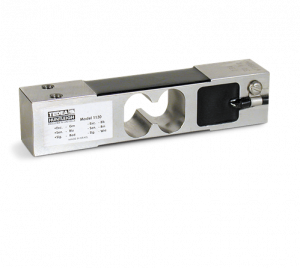

Tedea-Huntleigh 1130 Stainless Steel Single Point Load Cell

Stainless steel, single-point load cell designed for high performance in harsh environments. This product is primarily designed for platform weighing but is cost-effective to make it an appropriate selection for numerous applications. Capacities range from 7.5 kg to 100 kg and is provided complete with 1.5 m, 3 m or 25 ft of load cell cable.

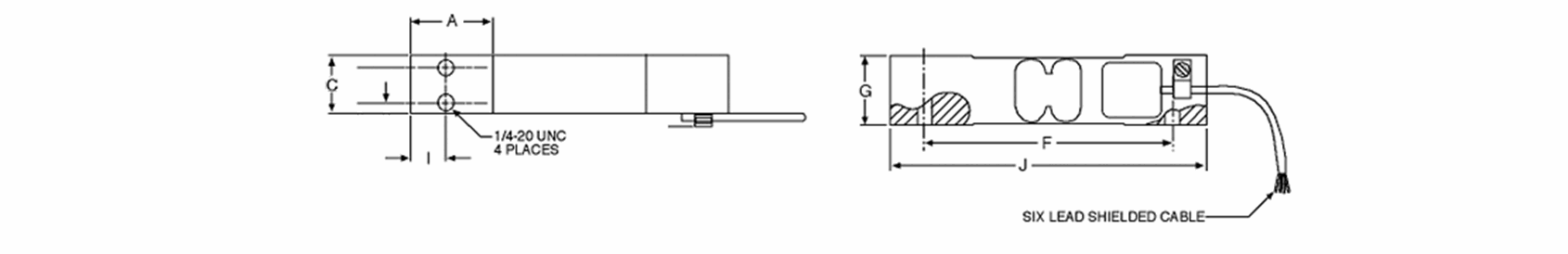

Rated Capacity	A	B	C	F	G	I	J
kg/mm
7.5 to 100	35.0	25.0	15.0	106.0	30.0	14.5	135.0

Description

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3) ohm

Input Resistance:
385 (± 15) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP66

Safe Overload:
200% full scale, at center loading point

Rated Excitation:
5 to 10 VDC (15 V maximum)

Total Error:
0.02% full scale

Insulation Resistance:
2,000 megohm

Deflection at Capacity:
0.015 in

Cable Length:
1.5 m
3 m
25 ft

Cable Diameter:
0.200 in
PVC jacket

Cable Color Code:
Green +Excitation
Black –Excitation
Red +Signal
White –Signal
Blue +Sense
Brown –Sense

Platform Size:
15.75 × 15.75 in

Warranty:
One-year limited

Approvals:
cFMus
NTEP (100 kg is non-NTEP)
