This very low-profile, three-beam single-point load cell is insensitive to off-center loads, providing accurate results. Coated with a unique humidity-resistant protective coating to assure long-term stability in harsh environments and extreme temperatures. This model is available in capacities ranging from 3 kg to 15 kg, and comes standard with 1 m of load cell cable.

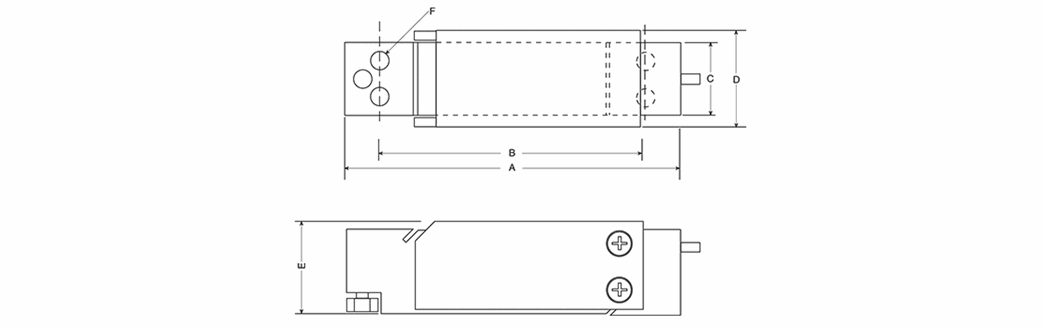

| Rated Capacity | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| kg/mm | ||||||
| 3 to 10 | 117.9 | 93.7 | 25.4 | 33.3 | 32.5 | 1/4-20 UNC x 10 DP |
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: Cable Length: |
Cable Diameter: 0.200 in PVC jacket Cable Color Code: Platform Size: Warranty: Approvals: |
