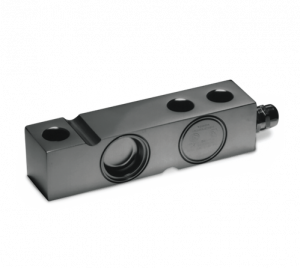

OIML approved, 6,000 division single-ended beam. Low profile and all-welded sealing combined with high accuracy makes this model suited for low-profile platforms, weigh modules, tanks and silos. Polyurethane shielded cable enable function in harsh environments while maintaining its operating specifications. Capacities range from 500 kg to 5,000 kg.

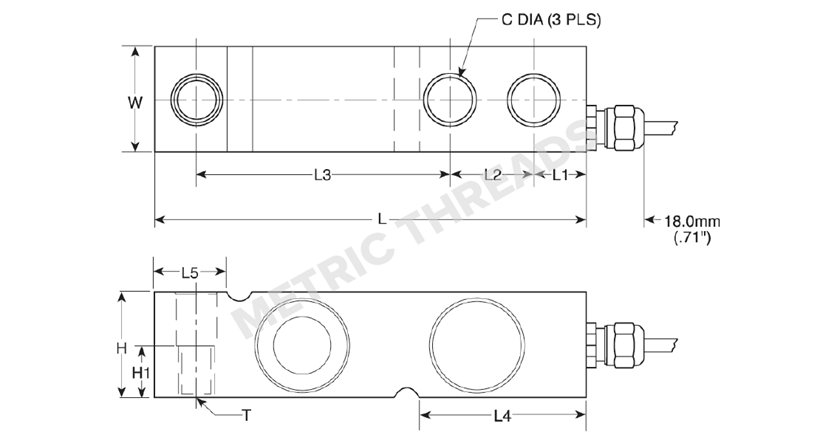

| Rated Capacity | C | C1 | H | H1 | L | L1 | L2 | L3 | L4 | L5 | T | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kg/mm | ||||||||||||
| 500 to 2,000 | 13.5 | 13.5 | 32.0 | 16.0 | 130.0 | 15.8 | 25.4 | 76.2 | 50.5 | 23.5 | M12 x 1.75 Thrd. |
32.0 |
| 5,000 | 20.5 | 20.5 | 48.0 | — | 171.5 | 19.0 | 38.1 | 95.3 | 70.0 | 37.0 | — | 36.5 |
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Combined Error: Insulation Resistance: Deflection at Capacity: Cable Length: |
Cable Diameter: 0.220 in Polyurethane jacket Cable Color Code: Warranty: Approvals: |
