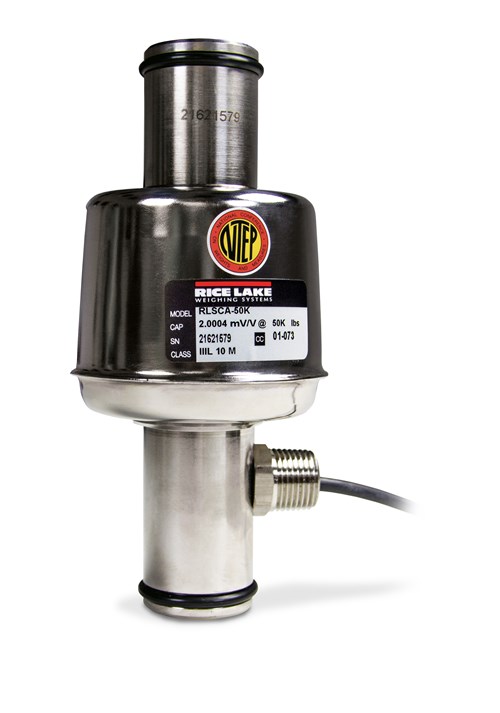

A replacement for Cardinal® SCA products. Features stainless steel construction and welded sealing to provide IP67 environmental protection. Includes a load cell and two retrofit cups that allow match up with various field applications. Backed by NTEP IIIL 10M Certification. Provides easy installation and access. Available in a 50,000 lb package, comes with 30 ft of standard load cell cable.

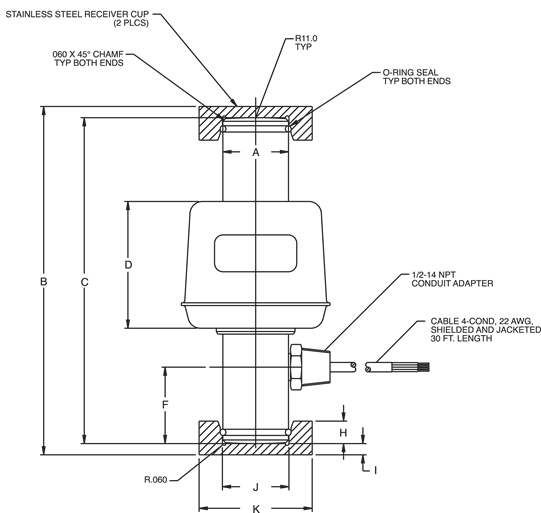

| Rated Capacity | A | B | C | D | F | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||
| 50,000 | 1.46 | 7.75 | 7.25 | 2.82 | 1.70 | 0.50 | 0.25 | 1.48 | 2.50 |
| Full Scale Output: 2 mv/V nominal Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Welded-seal, IP67 Safe Overload: Rated Excitation: Combined Error: Non-repeatability: Insulation Resistance: |
Cable Length: 30 ft Cable Diameter: Cable Color Code: Warranty: Approvals: |
