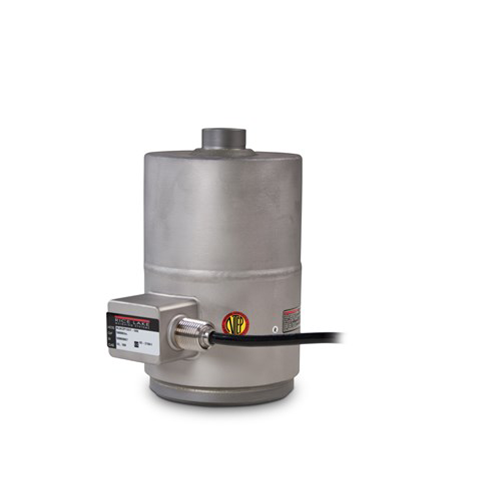

Single-column design with low deflection; hermetically sealed for trouble-free operation. Stainless steel for use in harsh environments. Compact and rugged. Capacities range from 50,000 to 200,000 lb. Complete with 35 ft of load cell cable.

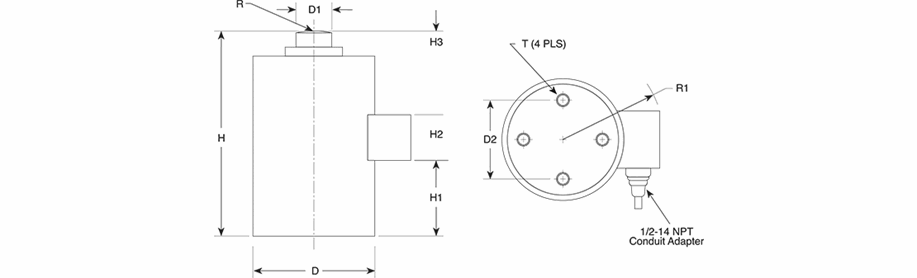

| Rated Capacity | D | D1 | D2 | H | H1 | H2 | H3 | R | R1 | T |
|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||||
| 50,000 | 4.50 | 1.25 | 2.38 | 7.50 | 1.17 | 0.75 | 0.75 | 8.00 | 3.75 | 3/8-24 UNF × .63 DP |
| 100,000 | 5.75 | 1.75 | 4.00 | 9.13 | 2.00 | 0.87 | 1.05 | 12.00 | 4.05 | 1/2-20 UNF × .75 DP |
| 200,000 | 7.50 | 2.50 | 5.50 | 11.63 | 2.93 | 0.97 | 0.97 | 12.00 | 5.11 | 5/8-18 UNF × 25.4 DP |
| Full Scale Output: 2.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Rated Excitation: Non-repeatability: Combined Error: Insulation Resistance: Deflection at Capacity: |
Cable Length: 35 ft Cable Color Code: Warranty: Approvals: |
