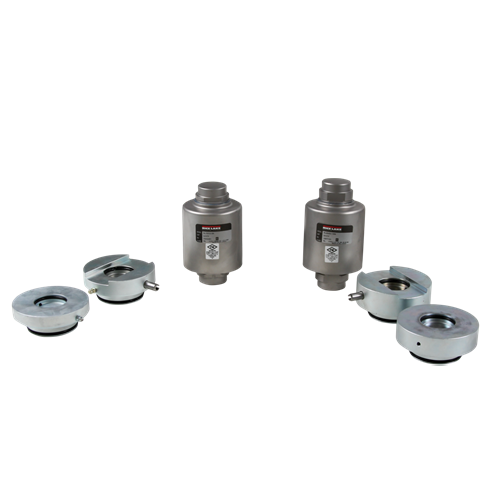

RL70510 and RL80453 Stainless Steel Rocker Load Cells

Replacements for the Fairbanks 70510 and 80453 rocker cells found in many truck scales. Stainless and hermetically sealed.

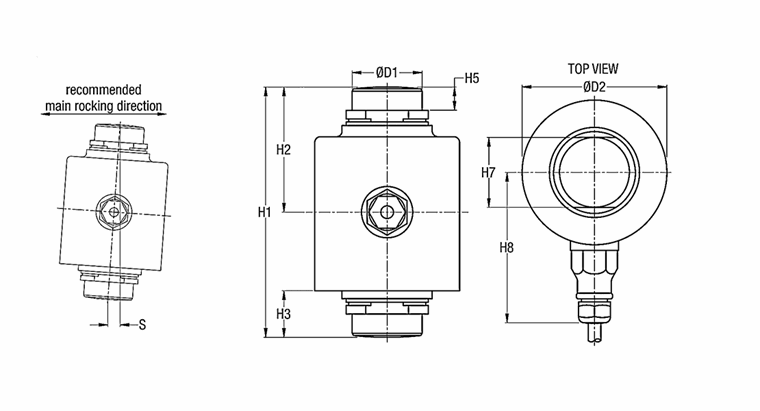

Rated Capacity	H1	H2	H3	H5	H7	H8	D1	D2
t/mm
30	5.51	2.76	1.02	0.51	1.54	3.32	1.54	3.18
lb/in
100,000	5.91	2.95	1.30	0.51	1.54	3.32	1.54	3.18

Description

Full Scale Output:
2.0 mV/v

Output Resistance:
1,000 (± 2) ohm

Input Resistance:
1,150 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
200% full scale

Rated Excitation:
5 to 10 VDC (15 V max)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
15 ft

Cable Diameter:
0.200 in
Stainless steel overbraid cable

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Warranty:
Two-year limited

Approvals:
NTEP 15-057
