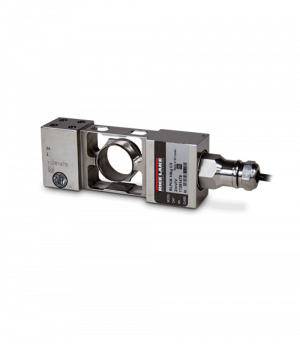

RLPC6 Stainless Steel Single-Point Load Cell

Stainless steel, hermetically sealed single-point load cell ideal for moist environments. NTEP Certified and comes with 10 ft of cable. Capacity from 10 kg to 200 kg.

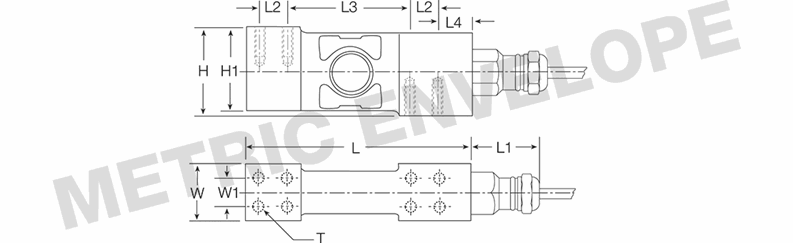

Rated Capacity	H	H1	L	L1	L2	L3	L4	W	W1	T
kg/mm
10 to 200	48.0	45.5	123.0	41.0	15.2	67.6	17.8	30.1	15.2	8 × M6/15 DP

Description

Full Scale Output:
2.0 mv/v

Output Resistance:
960 (± 50) ohm, nominal

Input Resistance:
1,100 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
10 ft

Cable Diameter:
0.196 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
Yellow Shield

Max Deflection:
0.006 to 0.010 in

Max Platform Size:
24 × 24 in

Warranty:
Two-year limited

Approvals:
FM
NTEP 06-011
