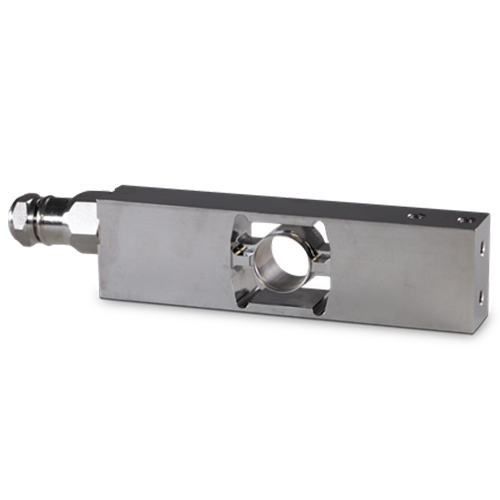

RLPC4SS-HE Stainless Steel Single Point Load Cell

Stainless steel hermetically sealed single-point designed for bench scales used in wash down applications. Available in capacities from 10 kg to 100 kg. NTEP Certified and OIML approved.

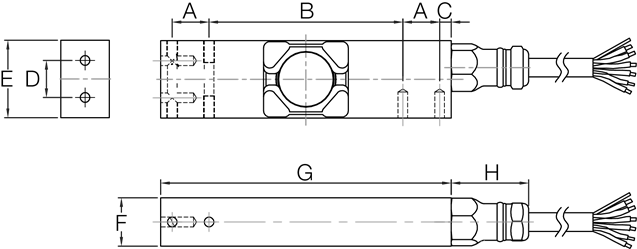

Rated Capacity	A	B	C	D	E	F	G	H
kg/mm
10 to 100	19.0	100.0	6.0	19.1	40.0	25.0	150.0	40.0

Description

Full Scale Output:
2 mv/vOutput Resistance:
960 (± 50) ohm

Input Resistance:
1100 (± 50) ohm

Material Finish:
Stainless steel

Temperature Compensation:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Hermetically sealed, IP68Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Insulation Resistance:
> 5,000 megohm

Max Platform Size:
500 × 400 mm

Combined Error:
0.02% full scale

Cable Length:
10 ftColor Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Blue +Sense
Brown -Sense
Yellow Shield

Warranty:
One-year limited

Approvals:
NTEP 21-016
OIML R60/2017-A-NL1-21.18
