RLPC3SS Stainless Steel Single Point Load Cell

Stainless steel, environmentally sealed single-point ideally suited for bench scales. NTEP certified and OIML approved with capacities from 7 to 150 kg. 10 ft of cable standard.

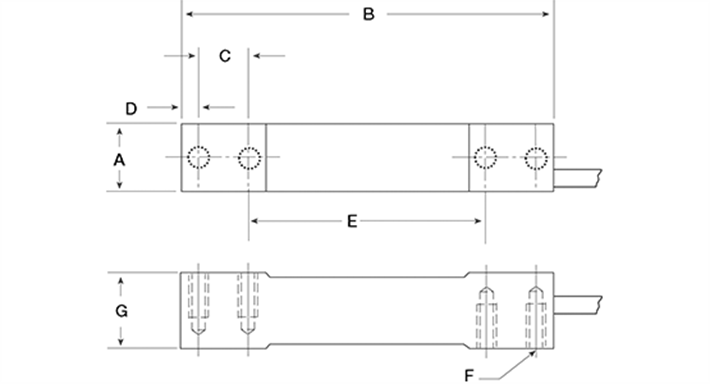

Rated Capacity	A	B	C	D	E	F	G
kg/mm
7 to 10	30.2	139.7	19.1	6.4	88.9	1/4-20 UNC	19.1
30 to 60	30.2	139.7	19.1	6.4	88.9	1/4-20 UNC	23.9
100 to 150	30.2	139.7	22.3	7.8	79.2	3/8-16 UNC	30.7

Description

Full Scale Output:
2 mv/vOutput Resistance:
350 (± 10) ohm

Input Resistance:
385 (± 15) ohm

Material Finish:
Stainless steel

Temperature Compensation:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)

Seal Type:
Environmentally sealed, IP67Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Insulation Resistance:
5,000 megohm

Max Platform Size:
7 kg to 30 kg: 350 × 350 mm
60 kg to 150 kg: 450 × 450 mm

Combined Error:
0.02% full scale

Cable Length:
10 ftCable Diameter:
0.140 in polyurethane jacket

Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Yellow Shield

Warranty:
One-year limited

Approvals:
NTEP 21-017
OIML R60/2017-A-NL1-21.17
