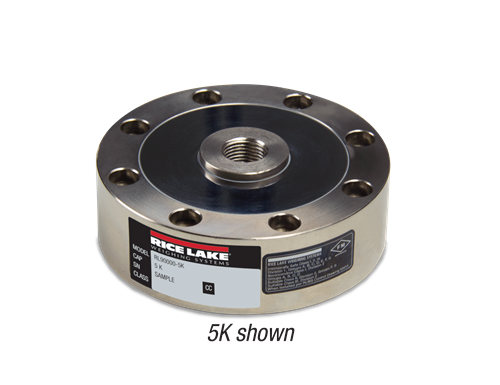

Environmentally sealed low-profile compression disk. Models with capacities of 5,000 lb and 10,000 lb can also be used in tension loading applications. Shear web design provides excellent performance and its low profile makes it ideal for applications where height is critical. Capacities range from 5,000 to 100,000 lb. Complete with 50 ft of load cell cable.

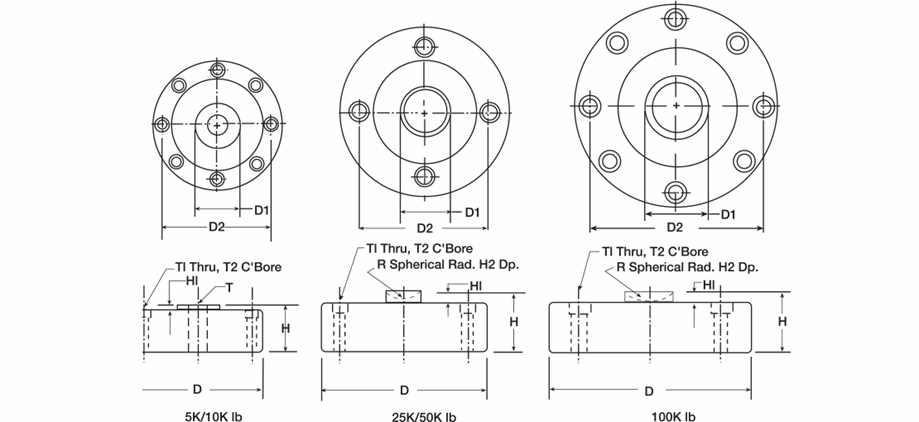

| Rated Capacity | T | R | D | D1 | D2 | H | H1 | H2 | T1 | T2 |
|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||||
| 5,000* to 10,000* | 5/8-18 UNF-3B | — | 4.12 | 1.26 | 3.50 | 1.37 | 0.12 | -— | 0.28 | 0.406 x .283 DP |
| 25,000 to 50,000 | — | 0.875 | 4.75 | 1.53 | 4.00 | 2.12 | 0.50 | 0.30 | 0.34 | 0.508 x .38 DP |
| 100,000 | — | 0.875 | 5.50 | 1.98 | 4.60 | 2.25 | 0.25 | 0.30 | 0.41 | 0.626 x .4 DP |
| * 5,000lb and 10,000lb models can be used in compression and tension load applications, load cup, pn 33616 is required for compression applications. | ||||||||||
| Full Scale Output: 4.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Environmentally sealed, IP67 Safe Overload: Safe Sideload: Rated Excitation: Nonlinearity: Hysteresis: Insulation Resistance: |
Cable Length: 50 ft Cable Diameter: Cable Color Code: Warranty: Approvals: |
