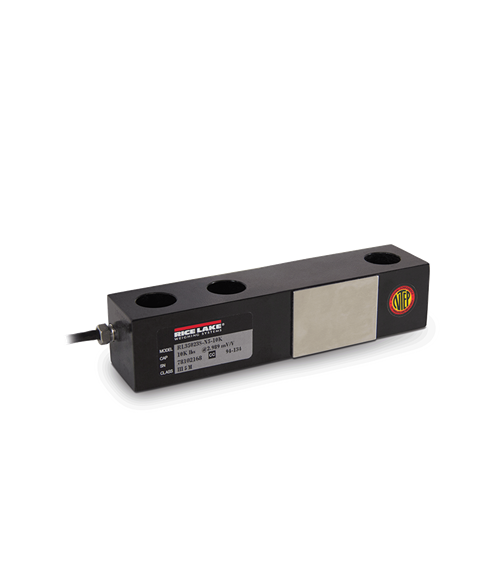

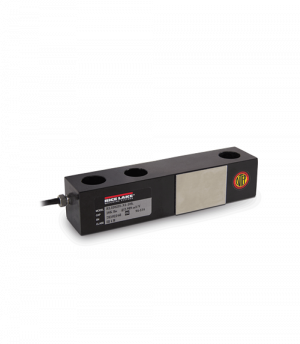

A version of the RL35023S stainless steel load cell but with the added protection of a proprietary coating. This coating protects the load cell element in dry chemical applications that would normally cause standard stainless steel load cells to fail.

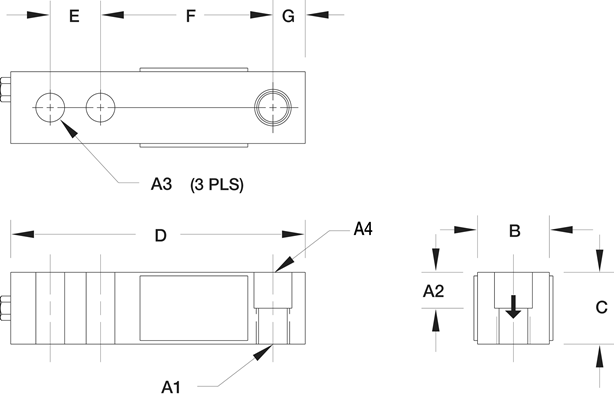

| Rated Capacity | A1 | A2 | A3 | A4 | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||||
| 1,000 to 4,000 | 1/2-20 UNF | 0.62 | 0.53 | 0.53 dia | 1.25 | 1.25 | 5.12 | 1.00 | 3.00 | 0.50 |
| 5000 to 10,000 | 3/4-16 UNF | 0.75 | 0.78 | 0.78 dia | 1.50 | 1.50 | 6.75 | 1.50 | 3.75 | 0.75 |
| Full Scale Output: 3.0 mV/V Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: |
Safe Overload: 150% full scale Safe Sideload: Rated Excitation: Combined Error: Deflection at Capacity: Cable Length: |
Cable Diameter: 0.200 in polyurethane jacket Cable Color Code: Insulation Resistance: Warranty: Approvals: |
