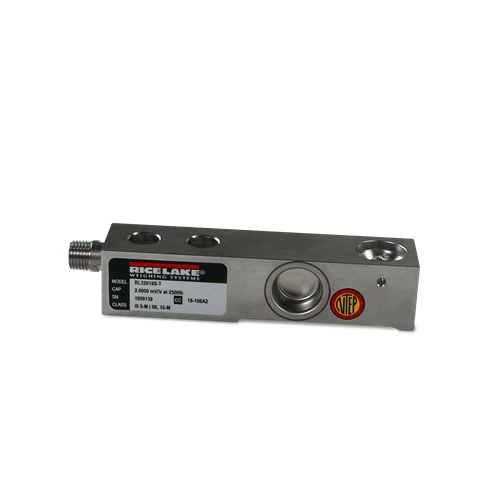

Replacement for the RL30745 load cell used in RLTM weigh modules and for the Mettler Toledo Model 745. Complete with 15 ft or 30 ft cable. NTEP Certified and FM approved.

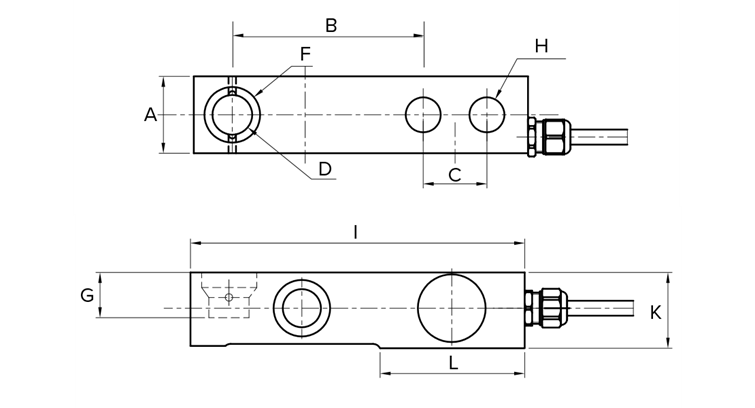

| Rated Capacity | A | B | C | D | F | G | H | I | K | L |
|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | ||||||||||
| 500 to 1,250 | 1.21 | 3.00 | 1.00 | 0.62 | 0.88 | 0.68 | 0.51 | 5.25 | 1.19 | 2.27 |
| 2,500 | 1.21 | 3.00 | 1.00 | 0.62 | 0.88 | 0.68 | 0.51 | 5.25 | 1.19 | 2.27 |
| 5,000 | 1.44 | 3.00 | 1.00 | 0.62 | 0.88 | 0.90 | 0.51 | 5.38 | 1.44 | 2.28 |
| 10,000 | 1.69 | 3.75 | 1.50 | 0.88 | 1.38 | 1.15 | 0.76 | 6.75 | 1.69 | 2.91 |
| Full Scale Output: 2.0 mV/V ±0.05% current matched Output Resistance: Input Resistance: Material/Finish: Temperature: |
Seal Type: Hermetically sealed, IP69K Safe Overload: Rated Excitation: Combined Error: Insulation Resistance: |
Cable Length: 15 ft 30 ft Cable Color Code: Warranty: Approvals: |
